AftermarketFARM.com | Poly Combine Reel Tine – Left-Hand Bat | Replaces John Deere AH166490 | RF0004

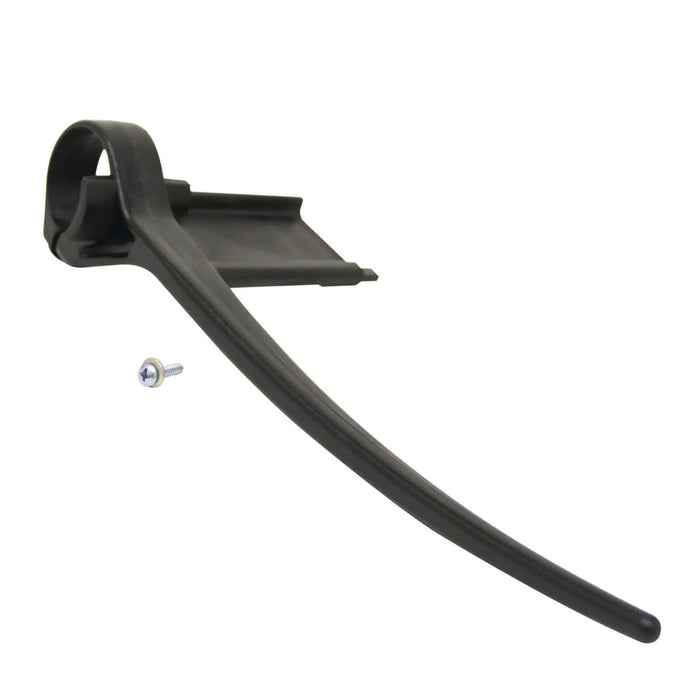

AftermarketFARM.com RF0004 is a Left-Hand Bat poly combine reel tine, also commonly referred to as a left-hand reel finger, designed to replace John Deere AH166490. It also cross-references AGCO 71389107, Case IH 410857A1, CNH / New Holland 86608283 and 86620755, Honey Bee 26963 and CLAAS / Lexion 3526110 in compatible combine header reel applications.
This Left-Hand Bat reel tine / reel finger is designed for pickup-reel systems using 6-inch tine spacing, a 1-3/8-inch (35 mm) reel tube and a 1/2-inch (12.5 mm) hex mounting interface. Its durable poly construction provides the flexibility needed to guide crop material toward the cutterbar and feeding system, while the left-hand bat design provides the correct crop-engaging profile for its position on the reel.
Verify the reel configuration before ordering, particularly on headers with serial-number or reel-system changes. RF0004 belongs to the 6-inch-spacing Left-Hand Bat reel tine family and should not be confused with the older small-spacing reel finger family or with Full Bat, Right-Hand Bat or No Bat versions. These reel tines are commonly packaged 10 per pack, but RF0004 is priced and sold individually so you can order the exact quantity required.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | RF0004 |
| Brand | AftermarketFARM.com |
| Part Type | Combine Reel Tine |
| Tine Style | Left-Hand Bat |
| Design | Single Wing |
| Orientation | Left Hand |
| Material | Poly / Nylon |
| Reel System | 6-inch spaced plastic-tine pickup reel |
| Reel Tube Diameter |
1-3/8 in 35 mm |
| Tine Spacing |
6 in 152 mm |
| Mounting Interface |
1/2 in Hex 12.5 mm Hex |
| Application | Combine Grain Header Reel |
| Pack Quantity | 10 |
| Sold As | Individual Tine |
Fits Machines
| Brand | Models |
|---|---|
| John Deere |
600F & 600R Series 615F, 618F, 618R, 620F, 620R, 622F, 622R, 625F, 625R, 630F, 630R, 635F 600D & 600FD Series – applicable earlier reel configurations, generally through S/N 784999 625D, 630D, 630FD, 635D, 635FD, 640D, 640FD 700D Series 725D, 730D, 735D 900F & 900R Series – generally S/N 685401 and later 913, 915F, 918, 918R, 920F, 920R, 922F, 922R, 924, 925F, 925R, 930F, 930R 900D Series 925D, 930D, 936D Verify reel configuration on machines near serial-number changes |
| Case IH |
1010, 1020 – selected later pickup-reel configurations 2010, 2020 3020 3162 Verify 6-inch reel spacing and Left-Hand Bat configuration |
| New Holland |
71C, 72C, 73C, 74C 92C, 94C 740CF 840CD, 880CF 88C Series 18HB, 21HB, 25HB Verify 6-inch Left-Hand Bat reel configuration |
| Gleaner / AGCO |
700, 800 7000, 7200 8000, 8200 9250 HCC Level 2 pickup reels with 6-inch spacing |
| Massey Ferguson |
8000, 8200 9250 9800, 9850 Selected 6-inch pickup-reel configurations |
| Honey Bee |
HCC reel applications using Honey Bee 26963 SP18, SP21, SP25, SP30, SP36, SP40, SP42 – selected configurations Verify 6-inch reel spacing |
| CLAAS / Lexion |
F-Series headers with HCC Level 2 reel Verify 6-inch spacing and Left-Hand Bat configuration |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | RF0004 |
Left-Hand Bat poly combine reel tine Sold individually |
| John Deere | AH166490 |
LH Bat plastic reel finger repair set Package of 10 |
| Case IH | 410857A1 |
Left-Hand Bat repair package Contains 10 reel fingers and mounting hardware |
| Case IH / CNH | 291311A1 | Finger reference used in the 410857A1 / 86620755 service-package family |
| CNH / New Holland | 86608283 | Plastic Left-Hand Bat finger Previous reference |
| CNH / New Holland | 86620755 | Current finger repair kit replacing 86608283 Package of 10 |
| AGCO | 71389107 | Plastic LH Bat finger HCC Level 2 / 6-inch spacing |
| Honey Bee | 26963 | Plastic finger – Bat Left Hand |
| CLAAS / Lexion | 3526110 | Plastic reel finger reference Also written 352 611 0 |
