AftermarketFARM.com | Rubber-Mounted Rake Tine – Single-Prong | Replaces John Deere AE56204 | PCRT08

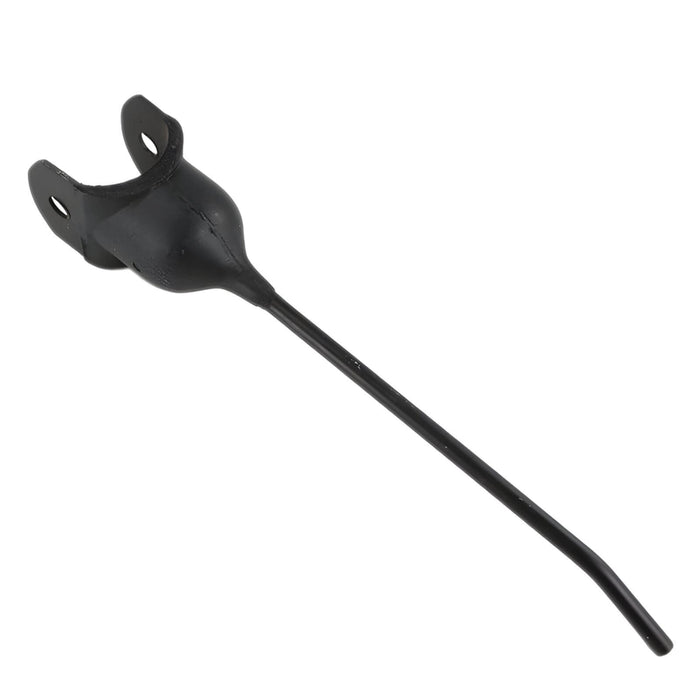

AftermarketFARM.com PCRT08 is a single-prong rubber-mounted rake tine designed for selected John Deere, Vermeer, Hesston and Massey Ferguson hay rakes. It replaces John Deere AE56204 and cross-references to Vermeer 2888-001, Hesston 1703743, Massey Ferguson 1058730M1 and the commonly used 96R5 replacement family.
The steel tine is securely mounted in a flexible rubber yoke to help absorb field shock while maintaining dependable crop pickup during raking. PCRT08 uses a single-prong, non-handed design with centered mounting holes, allowing the same tine to be used in compatible left- or right-hand positions. It features a 1-5/8-inch yoke opening, a 3/8-inch mounting hole, a 10-inch tine length from the mounting hole to the tip, and a 9/32-inch tine diameter.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | PCRT08 |
| Brand | AftermarketFARM.com |
| Part Type | Rake Tine |
| Style | Single-Prong |
| Orientation | Non-Handed Left or Right |
| Mount Type | Rubber Mounted |
| Construction | Steel Tine Rubber Yoke |
| Mounting Position | Centered |
| Mounting Hole | 3/8" / 0.375" |
| Yoke Opening | 1-5/8" |
| Tine Length |
10" Mounting Hole to Tip |
| Overall Length | Approx. 10-1/2" |
| Tine Diameter | 9/32" |
| Application | Hay Rake |
Fits Machines
| Brand | Models |
|---|---|
| John Deere |
700 705 |
| Vermeer |
R9, R21 R23, R23A R24, R24A R2300 – verify 1-5/8" yoke |
| Hesston |
3700, 3800 3810, 3900 3950 |
| Massey Ferguson |
585 588 |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | PCRT08 | Single-prong rubber-mounted replacement rake tine |
| John Deere | AE56204 | Primary OEM replacement reference |
| Vermeer |
2888-001 288-8001 2888001 |
Published Vermeer replacement references |
| Hesston | 1703743 | Hesston rake-tooth reference |
| Massey Ferguson | 1058730M1 | Massey Ferguson rake-tooth reference |
| Common Replacement Ref. |
96R5 A-96R5 |
Widely used rubber rake tooth replacement references |
| Other Aftermarket |
300718 45.300.718 52101484 469-2888001 4692888001 1413-8137 3013-8137 3298-74018 BHM90-0001 RMT-4, RMT4 RMT8 T16-0185 RTIHVR-92 RTIHVR92 |
Common aftermarket interchange numbers |
| Other Reference Numbers |
288801 A96R5 A-EF2888001 AEF2888001 EF2888001 EF288001 JDAE56204 TP-EF2888001 TPEF2888001 TPEF288801 |
Published catalog and search references EF formatting varies; verify before ordering |
