Walterscheid | PTO U-Joint Cross Kit 2200 Series | P-Seal 2xBBS | 116753

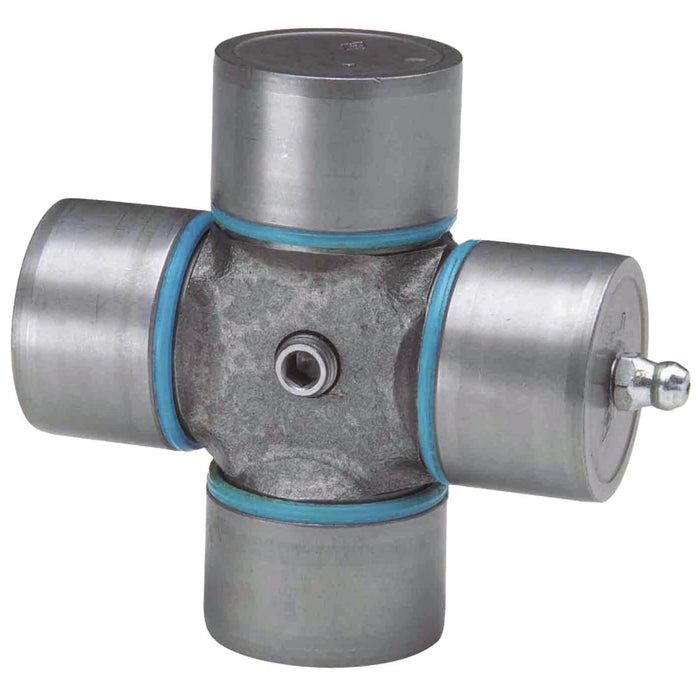

Genuine Walterscheid 116753 | PTO U-joint cross and bearing kit for 2200 Series agricultural PTO drivelines. This cross measures 24 × 61 mm and uses Walterscheid's upgraded P-Seal design with a 2xBBS lubrication configuration.
Designed as a direct replacement for compatible 2200 P-Series applications and as a P-Seal upgrade for matching W2200 drivelines using the same 24 × 61 mm cross size.
The same 2200-size cross is also used in the standard non-CV joint position of compatible WWE2280 wide-angle drivelines. In these applications, this cross fits the regular 2200-size joint and is not the 2280 CV cross.
Walterscheid offers several 2200-size cross kits with the same physical dimensions but different seal and lubrication versions. Part 116753 / 1116753 is the P-Seal 2xBBS version.
Walterscheid part 116753 corresponds to full Walterscheid OEM product number 1116753.
Verify Fit:

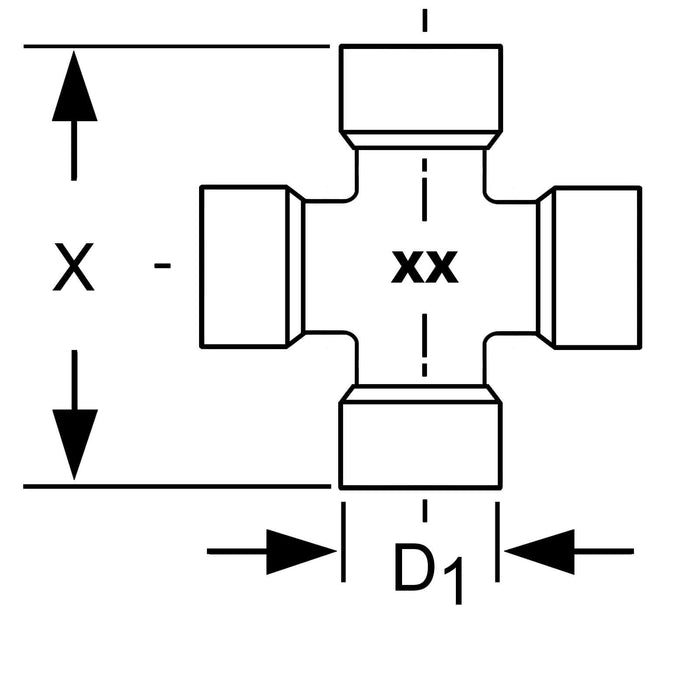

Confirm the original part number and cross dimensions before ordering: 24 mm D1 × 61 mm X. On compatible WWE2280 wide-angle drivelines, this cross is used in the standard non-CV joint position only.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 116753 |
| Walterscheid OEM Number | 1116753 |
| Brand | Walterscheid |
| Part Type | PTO U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2200 |
| Cross Size | 24 × 61 mm |
| Bearing Cup Diameter (D1) | 24 mm 0.945" |
| Cross Overall Length (X) | 61 mm 2.402" |
| Seal Type | P-Seal – Upgraded Seal Design |
| Lubrication | 2xBBS |
| Driveline Series | 2200 P-Series W2200 WWE2280 – Non-CV Joint |
| Walterscheid Drawing | 20.00.133 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| 2200 P-Series | Direct Fit | P-Series application P-Seal – 2xBBS |
| W2200 | Cross Replacement | Same 2200 cross size P-Seal upgrade version |
| WWE2280 | Non-CV Joint Only | Standard 2200-size joint Not for the 2280 CV cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid P-Series | 116753 1116753 | 24 × 61 mm P-Seal – 2xBBS |
| Walterscheid P-Series | 1121142 | 24 × 61 mm P-Seal – Default version |
| Walterscheid P-Series | 122076 1122076 | 24 × 61 mm P-Seal – 1xBBS |
| Walterscheid P-Series | 1116525 | 24 × 61 mm P-Seal – Universal version |
| Walterscheid W-Series | 1044439 | 24 × 61 mm Standard-seal default version |
| Walterscheid W-Series | 116402 1116402 | 24 × 61 mm Standard Seal – 1xBBS |
| Walterscheid W-Series | 1116392 | 24 × 61 mm Standard Seal – Universal |
| Walterscheid W-Series | 1116412 | 24 × 61 mm Standard Seal – 2xBBS |
| Weasler | 200-8261 201-8261 | 23.8 × 61.2 mm Series 2 / W2200-size cross |
| Bondioli & Pavesi | 41202 41202R | 23.8 × 61.3 mm Series 2 cross |
| Comer | 180.012.130 | 23.8 × 61.3 mm T20 / Series 2-size cross |
| Neapco | 1-0221 | 23.8 × 61.1 mm Walterscheid 2200 replacement family |
| Vapormatic | VTE5003 | 23.8 × 61.2 mm W2200-size cross reference |
| Aftermarket Ref. | PM200-8261 241M 51A2447 W044439 W044439-A W044439SQ WCB220 BCB220 395122076 200-8261M 203-8261M 200-8261P 203-8261D 840 / 840E | 2200 / W2200-size references Commonly listed around 23.8 × 61.2 mm Verify fitment before ordering |
