Walterscheid | Kit croisillon de cardan PDF série 2400 | Joint P 2XBBS | 116361

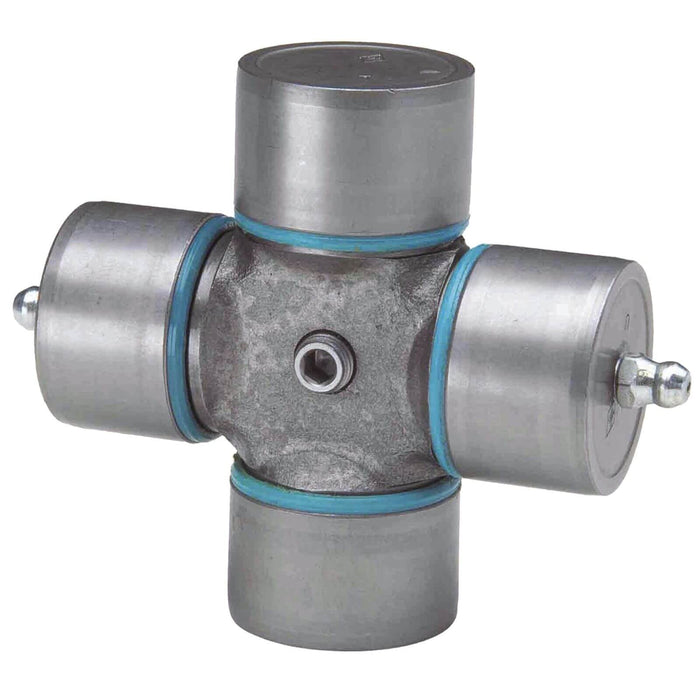

Genuine Walterscheid 116361 | PTO U-joint cross and bearing kit for 2400 / P400 Series agricultural PTO drivelines. This cross measures 32 × 76 mm and uses Walterscheid's upgraded P-Seal design with a 2xBBS lubrication configuration.
Designed as a direct replacement for compatible P400 / 2400 P-Series applications. The same 32 × 76 mm physical cross size is also used in W2400 drivelines, allowing this P-Series cross to serve as a P-Seal upgrade where the original yokes use the matching 2400-size cross.
Part 116361 / 1116361 is Walterscheid's P-Seal 2xBBS version. Walterscheid also offers P400 cross kits at the same dimensions in default and 1xBBS configurations, while matching W2400 cross kits use the standard Walterscheid seal design.
The same 32 × 76 mm 2400-size cross is also used in the regular non-CV joint position of compatible PWE480 and WWE2480 wide-angle drivelines. In these applications, this is the standard 2400-size U-joint cross and is not the unequal-arm 2480 / P480 CV cross.
Walterscheid part 116361 corresponds to full Walterscheid OEM product number 1116361.
Verify Fit:

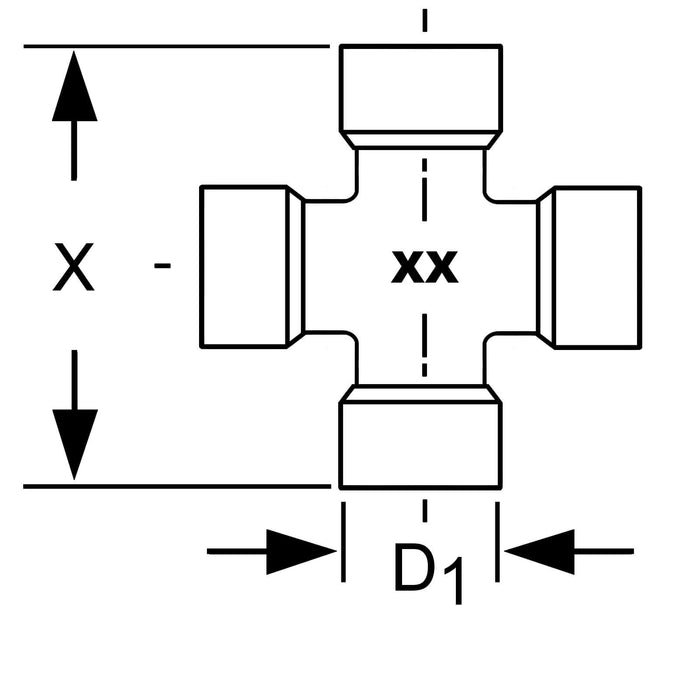

Confirm the original part number and cross dimensions before ordering: 32 mm D1 × 76 mm X. On wide-angle / CV drivelines, this cross is used only in the standard non-CV joint position, not in the CV joint.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 116361 |
| Walterscheid OEM Number | 1116361 |
| Brand | Walterscheid |
| Part Type | PTO U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2400 / P400 |
| Cross Size | 32 × 76 mm |
| Bearing Cup Diameter (D1) |
32 mm 1.260" |
| Cross Overall Length (X) |
76 mm 2.992" |
| Seal Type | P-Seal – Upgraded Seal Design |
| Lubrication | 2xBBS / Bushing-Bottom Lubrication |
| Driveline Series |
P400 / 2400 P-Series W2400 PWE480 – Non-CV Joint WWE2480 – Non-CV Joint |
| Walterscheid Drawing | 35.00.133 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| P400 / 2400 | Direct Fit |
P-Series application P-Seal – 2xBBS |
| W2400 | Cross Replacement |
Same 32 × 76 mm cross size P-Seal upgrade version |
| PWE480 | Non-CV Joint Only |
Standard 2400-size joint Not for the P480 CV cross |
| WWE2480 | Non-CV Joint Only |
Standard 2400-size joint Not for the 2480 CV cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
|
Walterscheid P-Series |
116361 1116361 |
32 × 76 mm P-Seal – 2xBBS |
|
Walterscheid P-Series |
1121144 |
32 × 76 mm P-Seal – Default version |
|
Walterscheid P-Series |
122078 1122078 |
32 × 76 mm P-Seal – 1xBBS |
|
Walterscheid W-Series |
1312410 350000 / 35.00.00 |
32 × 76 mm Standard-seal default version |
|
Walterscheid W-Series |
116404 1116404 |
32 × 76 mm Standard Seal – 1xBBS |
|
Walterscheid W-Series |
1116394 |
32 × 76 mm Standard Seal – Universal |
| Weasler |
200-7676 201-7676 |
32 × 76 mm 2400 / P400 dimensional equivalent |
| Vapormatic | VTE5008 |
32 × 76 mm 2400 / P400-size cross |
| La Magdalena | 2224 |
32 × 76 mm 2400-size cross |
| GMB | 2500140 |
32 × 75.9 mm Near-equivalent published dimensions Verify measurements |
| Aftermarket Ref. |
395116361 395121144 A-W312410-A WN-W312410-A S.6450 S.172040 343-1206 WCB035 PM200-7676 B150120 4242000 500-124-34 P010154 |
2400 / P400-size references Commonly listed around 32 × 76 mm Verify fitment before ordering |
