AftermarketFARM.com | Plastic Combine Reel Tine – Left-Hand Bat | Replaces Case IH 410857A1 | RF0014

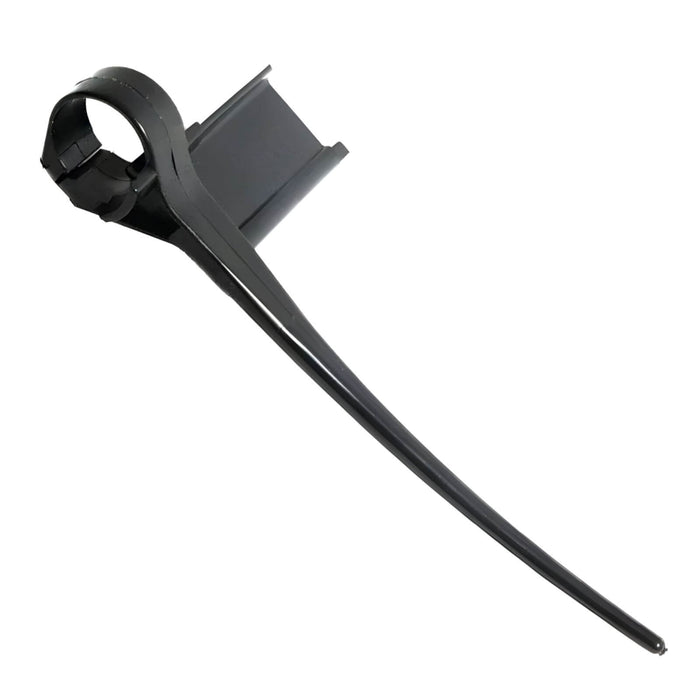

AftermarketFARM.com RF0014 is a plastic left-hand combine reel tine designed for grain header reel systems using 6-inch tine spacing. Also commonly called a left-hand reel finger, it replaces the left-hand finger used with Case IH 410857A1 and cross-references to compatible John Deere, New Holland, AGCO, Gleaner, Massey Ferguson, Honey Bee and Claas / Lexion applications.
The left-hand bat design fits compatible pipe-reel systems using a 1.375-inch reel tube with a 0.500-inch hex mounting hole. These tines come packaged 10 per pack, but RF0014 is priced and sold individually, allowing you to order only the quantity required.
Opposite-Hand Version: RF0014 is the left-hand version. For the matching right-hand combine reel tine, see AftermarketFARM.com RF0015.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | RF0014 |
| Brand | AftermarketFARM.com |
| Part Type | Combine Reel Tine |
| Orientation | Left Hand |
| Style | Left-Hand Bat |
| Material | Nylon / Plastic |
| Reel Style | 6-in Pipe Reel / HCC Level II Style |
| Reel Tube | 1.375" / Approx. 35 mm |
| Hex Hole | 0.500" / Approx. 12.7 mm |
| Tine Spacing | 6" / Approx. 152 mm |
| Application | Combine Grain Header Reel |
| Pack Quantity | 10 Tines |
| Sold As | Individual Tine (Priced individually) |
Fits Machines
| Brand | Models |
|---|---|
| Case IH | 1010, 1020 2010, 2020, 3020 |
| John Deere |
|
| New Holland | 71C, 72C, 73C, 74C 92C, 94C, 740CF |
| Gleaner | 700, 800, 7000, 7200 8000, 8200, 9250 |
| Massey Ferguson | 8000, 8200, 9250 9800, 9850 |
| Claas / Lexion | F-Series platforms equipped with HCC Level II reels |
| Honey Bee | SP18, SP21, SP25, SP30 SP36, SP40, SP42 Other compatible headers using the same 6-inch reel configuration |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | RF0014 | Individual left-hand replacement tine |
| Case IH |
410857A1 291311A1 |
410857A1 repair package 291311A1 individual LH finger |
| John Deere | AH166490 | LH reel-finger package commonly supplied as 10 |
| New Holland |
86608283 86620755 |
Left-hand reel-finger references |
| AGCO | 71389107 | Left-hand wing reference |
| Honey Bee | 26963 | Left-hand reel-finger reference |
| Claas / Lexion |
3526110 352 611 0 |
HCC Level II reel reference |
| A&I Products | A-AH166490 | Recognized aftermarket interchange |
| Recognized Aftermarket |
AMX29056 864-SMA166490 |
Common aftermarket interchange numbers |
