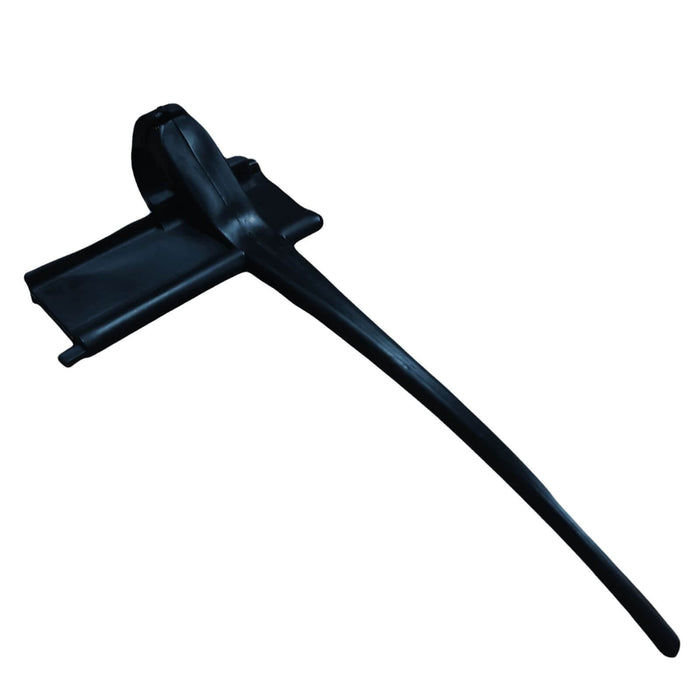

AftermarketFARM.com RF0015 is a plastic right-hand combine reel tine designed for grain header reel systems using 6-inch tine spacing. Also commonly called a right-hand reel finger, it replaces John Deere AH166491 and cross-references to compatible Case IH, New Holland, AGCO, Gleaner, Massey Ferguson, Honey Bee and Claas / Lexion applications.
The right-hand Bat design fits compatible pipe-reel systems using a 1.375-inch reel tube with a 0.500-inch hex mounting hole. These tines come packaged 10 per pack, but RF0015 is priced and sold individually, allowing you to order only the quantity required.
Opposite-Hand Version: RF0015 is the right-hand version. For the matching left-hand combine reel tine, see AftermarketFARM.com RF0014.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | RF0015 |
| Brand | AftermarketFARM.com |
| Part Type | Combine Reel Tine |
| Orientation | Right Hand |
| Style | Right-Hand Bat |
| Material | Nylon / Plastic |
| Reel Style | 6-in Pipe Reel / HCC Level II Style |
| Reel Tube | 1.375" / Approx. 35 mm |
| Hex Hole | 0.500" / Approx. 12.7 mm |
| Tine Spacing | 6" / Approx. 152 mm |
| Application | Combine Grain Header Reel |
| Pack Quantity | 10 Tines |
| Sold As |
Individual Tine (Priced individually) |
Fits Machines
| Brand | Models |
|---|---|
| Case IH | 1010, 1020 2010, 2020, 3020 |
| John Deere |
|
| New Holland | 71C, 72C, 73C, 74C 92C, 94C, 740CF |
| Gleaner | 700, 800, 7000, 7200 8000, 8200, 9250 |
| Massey Ferguson | 8000, 8200, 9250 9800, 9850 |
| Claas / Lexion | F-Series platforms equipped with HCC Level II reels |
| Honey Bee | SP18, SP21, SP25, SP30 SP36, SP40, SP42 Other compatible headers using the same 6-inch reel configuration |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | RF0015 | Individual right-hand replacement tine |
| John Deere |
AH166491 H169805 |
AH166491 RH finger package H169805 individual finger |
| Case IH |
410858A1 291312A1 |
410858A1 repair package 291312A1 individual RH finger |
| New Holland |
86608284 86620757 |
Right-hand reel-finger references |
| AGCO | 71389108 | Right-hand wing reference |
| Honey Bee | 26964 | Right-hand reel-finger reference |
| Claas / Lexion |
3526100 352 610 0 |
HCC Level II reel reference |
| Hart Carter | D46150132 | Right-hand finger reference |
| A&I Products | A-AH166491 | Recognized aftermarket interchange |
| Recognized Aftermarket |
AMX29057 864-SMA166491 |
Common aftermarket interchange numbers |
SKU RF0015
