AftermarketFARM.com | Rubber-Mounted Rake Tine – Left Hand | Replaces New Holland 850613 | PCRT05

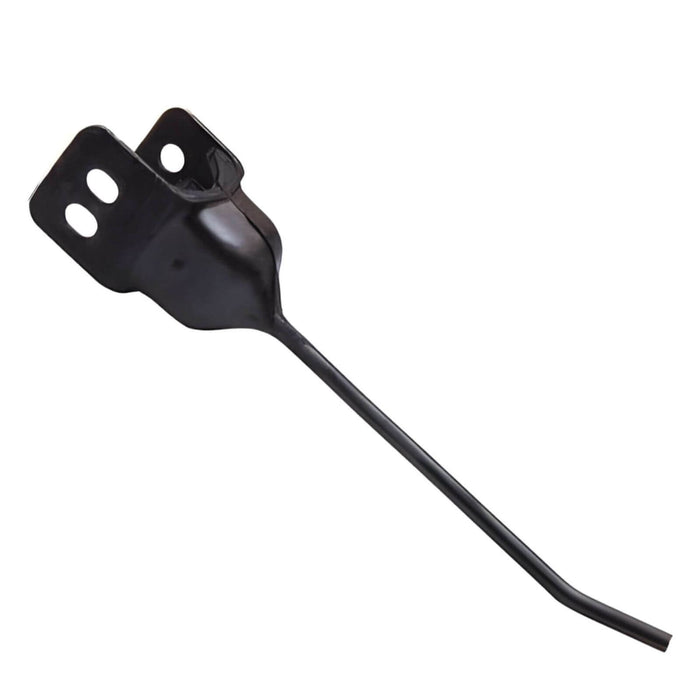

AftermarketFARM.com PCRT05 is a left-hand rubber-mounted rake tine designed for selected New Holland, Massey Ferguson, Gearmore and Allen hay rake applications. Also commonly called a rubber rake tooth, it replaces New Holland 850613 and 65668 and cross-references to Massey Ferguson 580848M1 and the commonly used 96R23 replacement family.
The steel tine is securely mounted in a flexible rubber yoke to absorb field shock while maintaining dependable crop pickup. PCRT05 features a 3/8-inch mounting hole, a 1-55/64-inch yoke opening, a 10-inch tine length from the mounting hole, and a 9/32-inch tine diameter.
Opposite-Hand Version: PCRT05 is the left-hand version. For the matching right-hand rubber-mounted rake tine, see AftermarketFARM.com PCRT06.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | PCRT05 |
| Brand | AftermarketFARM.com |
| Part Type | Rake Tine |
| Orientation | Left Hand |
| Mount Type | Rubber Mounted |
| Construction | Steel Tine Rubber Mount |
| Mounting Hole | 3/8" / 0.375" |
| Yoke Opening | 1-55/64" |
| Tine Length |
10" From Mounting Hole |
| Tine Diameter | 9/32" |
| Application | Hay Rake Side-Delivery Rake |
Fits Machines
| Brand | Models |
|---|---|
| New Holland |
216 – with Left-Hand Hook 258 – with Left-Hand Hook 259 Rolabar Rake |
| Massey Ferguson |
25 – S/N 419009907 & Later 36 – S/N 012159 & Later 37 |
| Gearmore |
2027-G2 2030-G2 |
| Allen |
Left-hand rake applications using the 850613-style tine |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | PCRT05 | Left-hand rubber-mounted replacement rake tine |
| New Holland |
850613 65668 PMNH850613L |
Primary OEM replacement references |
| Massey Ferguson |
580848M1 580848M91 |
Left-hand rake-tooth references |
| Gearmore | HR-0169 | Left-hand rake-tooth reference |
| Common Replacement Ref. |
96R23 | Widely used left-hand replacement reference |
| Other Aftermarket |
127-1302 300114, 352038 469-850613 469850613 65668-K, 65668K 9000-999 BR65668IMP NH850613 |
Common aftermarket interchange numbers |
| Other Published References |
RMT-3, RMT3 SHN-352038 T16-0154 URMT-3 RTIANHL RTIANH-L |
Published distributor and interchange references |
| Additional References |
65668NH 65668NHGV 80850613 850613BDS 850613DS 850613-IMP 850613IMP |
Additional published cross-reference numbers |
