AftermarketFARM.com | Plastic Combine Reel Tine – Full Bat | Replaces Case IH 410856A1 | RF0001

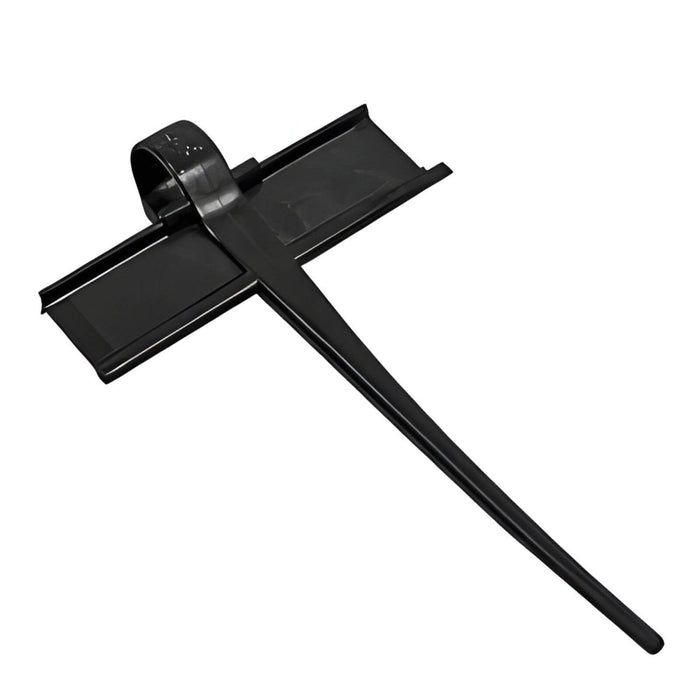

AftermarketFARM.com RF0001 is a plastic full-bat combine reel tine designed for HCC Level II and compatible grain-header reel systems using 6-inch tine spacing. This double-wing reel tine replaces Case IH 410856A1 and the individual Case IH / New Holland finger 291310A1, while also cross-referencing to John Deere AH166489 and H169804, AGCO 71389106, Honey Bee 26962 and Claas / Lexion 3526090.
The full-bat design fits compatible pipe-reel systems using a 1.375-inch reel tube, a 0.500-inch hex mounting hole and 6-inch tine spacing. Its double-wing profile provides broad crop contact to help guide standing material toward the cutterbar and promote smooth, consistent crop feeding into the header.
The widely recognized 783597 number is a common aftermarket replacement reference for this full-bat Level II tine family. RF0001 is commonly packaged 10 per pack, but is priced and sold individually, allowing you to order only the quantity required.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | RF0001 |
| Brand | AftermarketFARM.com |
| Part Type | Combine Reel Tine |
| Tine Style | Full Bat / Double Wing |
| Orientation | Non-Handed / Full Bat |
| Material | Nylon / Plastic |
| Reel System | HCC Level II / Compatible Pipe Reel |
| Reel Tube Diameter |
1.375" Approx. 1-3/8" |
| Mounting Hole |
0.500" Hex Approx. 1/2" |
| Tine Spacing |
6" Approx. 152 mm |
| Wing Configuration | Double Wing / Full Bat |
| Application | Combine Grain Header Reel |
| Pack Quantity | 10 |
| Sold As | Individual Tine |
Fits Machines
| Brand | Models |
|---|---|
| Case IH |
1010 – selected later 6" reel configurations 1020 – selected later / Level II reel configurations 2010, 2020, 3020 18HB, 21HB, 25HB 3162 Draper Header |
| John Deere |
600 Series: 615F, 618F, 618R 620F, 620R, 622F, 622R 625F, 625R, 630F, 630R, 635F Draper: 625D, 630D, 635D, 640D 725D, 730D, 735D Flex Draper: 630FD, 635FD, 640FD 600D / 600FD applications through S/N 784999 900 Series: 913, 915F, 918, 918R 920F, 920R, 922F, 922R 924, 925, 925D, 925F, 925R 930D, 930F, 930R, 936D 900F / 900R applications generally S/N 685401 & later RA22, RA25, RA30 |
| New Holland |
71C, 72C, 73C, 74C 92C, 94C 740CF 840CD, 880CF 88C30P, 88C36P 88C42P, 88C45P |
| Gleaner |
700, 800 7000, 7200 8000, 8200 9250 |
| Massey Ferguson |
7200 8000, 8200 9250 9800, 9850 |
| Honey Bee |
SP18, SP21, SP25, SP30 SP36, SP40, SP42 Compatible 6" HCC / Level II reel configurations |
| Claas / Lexion |
F20, F25, F30 F525, F530, F535, F540 Compatible HCC Level II reel configurations |
| Challenger |
Selected Flex header applications Verify 6" Level II reel configuration |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | RF0001 | Plastic full-bat combine reel tine |
| Case IH / New Holland |
410856A1 291310A1 86608281 86620758 |
Full-bat OEM family 291310A1 – individual tine 410856A1 – package of 10 |
| John Deere |
H169804 AH166489 AH166493 |
H169804 – individual full-bat finger AH166489 – package of 10 AH166493 – bulk package |
| AGCO / Gleaner / Massey Ferguson |
71389106 D46150130 |
Published full-bat Level II references |
| Honey Bee / Hart Carter |
26962 HB26962 |
Published full-bat plastic reel-finger references |
| Claas / Lexion |
3526090 352 609 0 |
HCC Level II full-bat reference |
| Common Replacement Ref. |
783597 A-783597 |
Widely recognized aftermarket full-bat Level II reference |
| CNH Service / Other Reference |
B95856 B95857 B95872 |
Published CNH service / interchange references for compatible bat styles |
| Other Aftermarket |
783707 710010 01186 224047 TIN224047 224016B SH324047 CV102611 RT-804, RT804 T16-0740, T160740 AMX27222 CM783597 A-AH166489 WN-AH166489 WN-410856A1 864-SMA166489 |
Additional published aftermarket interchange numbers |
