AftermarketFARM.com | Double-Tine Rubber-Mounted Pickup Tooth | Replaces New Holland 84404537 | PCRT25

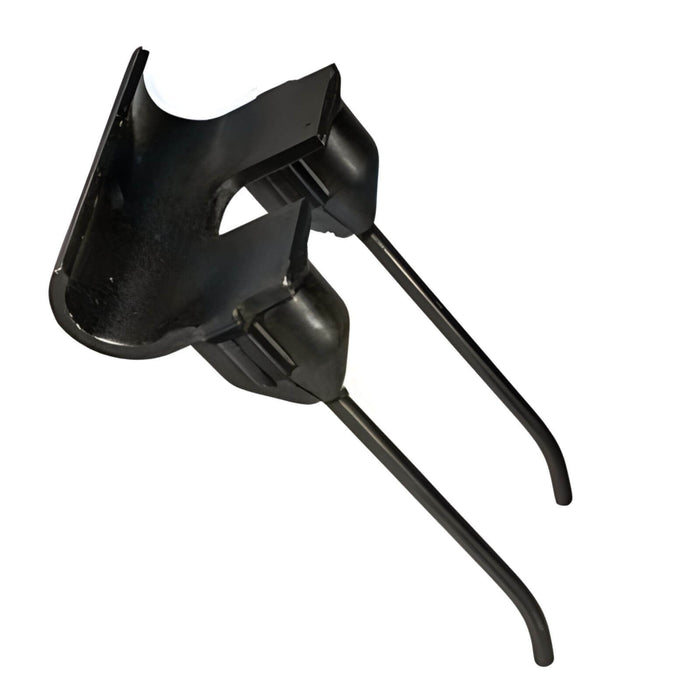

AftermarketFARM.com PCRT25 is a double-tine rubber-mounted pickup tooth designed for selected New Holland and Case IH round baler pickup systems. It replaces New Holland / Case IH 84404537 and the earlier OEM number 51608754, and is used across selected BR, Roll-Belt, Pro-Belt and RB-series balers.
The tooth uses two bent steel prongs mounted in a durable rubber yoke to lift windrowed crop from the ground and carry it into the baler pickup and feeding system. The replacement design uses an approximately 1-1/8-inch yoke height, 5/16-inch mounting hole and 1/4-inch tine diameter. CNH publishes the original 84404537 tooth at approximately 162 × 93.6 × 6 mm.
On certain pickup assemblies, PCRT25 is used only in specific tine positions. For example, selected New Holland Roll-Belt 150 and 180 pickups use 84404537 in the inner pickup-tine positions while a different tooth is used in the outer positions. Match the OEM number, tine geometry and pickup configuration when replacing an existing tooth.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | PCRT25 |
| Brand | AftermarketFARM.com |
| Part Type | Pickup Tooth |
| Tine Style | Double-Tine / 2-Prong |
| Tine Shape | Bent Prong |
| Mount | Rubber Mounted |
| Construction | Steel Tines / Rubber Yoke |
| Yoke Height | Approx. 1-1/8" |
| Mounting Hole | 5/16" |
| Replacement Tine Length |
Approx. 7-3/4" Bottom of yoke to tine tip |
| Tine Diameter |
Approx. 1/4" OEM specification: 6 mm |
| OEM Published Size |
162 × 93.6 × 6 mm Length × width × tine diameter |
| Application | Round Baler Pickup Reel |
Fits Machines
| Brand | Models |
|---|---|
| New Holland |
BR Series: BR7060, BR7070 BR7090 – verify pickup / serial configuration Roll-Belt: 150, 180, 450, 451, 460 550, 560, 561 Roll-Belt 150 and 180 – inner pickup-tine positions on applicable pickup assemblies Pro-Belt: 165, 190, 450, 460 |
| Case IH |
RB454, RB455 RB464, RB465 RB564, RB565 RB456 HD Pro RB466 HD Pro RB566 |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | PCRT25 | Double-tine rubber-mounted pickup tooth |
| New Holland / Case IH |
84404537 51608754 |
84404537 – current OEM reference 51608754 – previous OEM number replaced by 84404537 |
| CNH Alternative | AS165432AP |
Published replacement alternative for 84404537 |
| Common Replacement Ref. |
165432 MRMT871 |
Commonly published aftermarket replacement references |
| Other Aftermarket |
A-84404537 WN-A-84404537 AI-A-84404537 A-84404537-AI RLHAY871 SH84537 |
Additional published aftermarket replacement numbers |
| Other Reference Numbers |
07055537 |
Published reference associated with the 84404537 tooth family |
