AftermarketFARM.com | Poly Combine Reel Tine – Left-Hand Bat | Replaces John Deere H142315 | RF0004

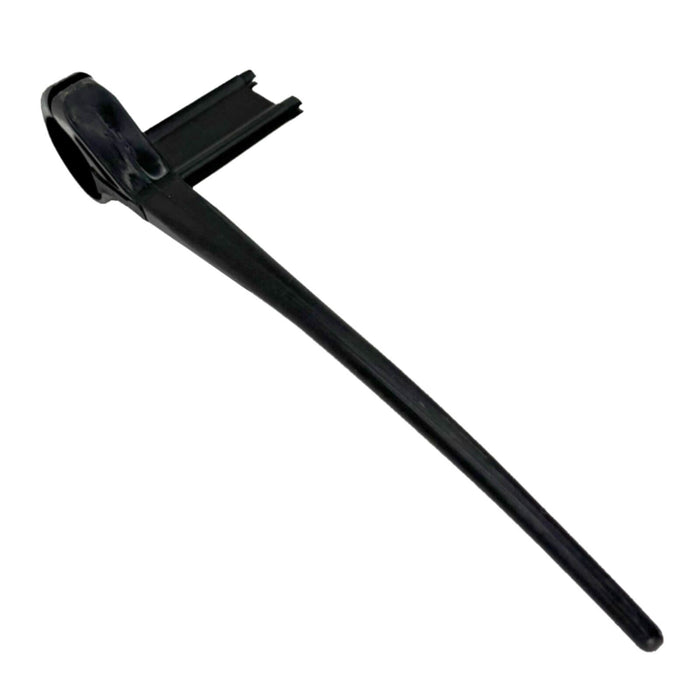

AftermarketFARM.com RF0004 is a 4.5-inch Left-Hand Bat poly combine reel tine, also commonly referred to as a left-hand reel finger or left-wing reel tine, for older HCC-style pickup-reel systems. It replaces John Deere H142315, Case IH 1989440C1, AGCO / Gleaner 71367263, New Holland 9842261 and Massey Ferguson 1077757M1. The common aftermarket reference P142314 is also associated with this older left-hand reel-finger family.
RF0004 belongs to the earlier HCC Level 1 / 4.5-inch-spacing reel system and uses a Left-Hand Bat / Single-Wing design. This older family is physically different from the later 6-inch Left-Hand Bat family used with John Deere AH166490, AGCO 71389107 and related service-kit numbers. When identifying the correct tine, compare the original OEM number, wing orientation, reel spacing and existing finger geometry rather than relying on overall tine length alone.
Verify the reel configuration before ordering, especially on machines that were available with more than one pickup-reel system. Some later New Holland / CNH HCC applications also catalog 9842261 or aftermarket interchange numbers that overlap with newer reel-finger families; those applications should be verified against the original finger number and reel geometry before substitution. RF0004 is packaged 10 per bag but priced and sold individually so you can order the exact quantity required.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | RF0004 |
| Brand | AftermarketFARM.com |
| Part Type | Combine Reel Tine |
| Tine Style | Left-Hand Bat |
| Design | Single Wing / Left Wing |
| Orientation | Left Hand |
| Material | Poly / Plastic |
| Reel System | HCC Level 1 / older pipe-reel system 4.5-inch nominal spacing |
| Nominal Tine Spacing | 4.5 inches / approximately 114 mm |
| Application | Combine Grain Header / Pickup Reel Left-Hand Bat Position |
| Package Quantity | 10 tines per bag |
| Sold As | Individual Tine |
Fits Machines
| Brand | Models |
|---|---|
| John Deere |
900 Series – S/N 645301–685400: 913, 915F, 915R, 918, 918F, 918R, 920, 920F, 920R, 922, 922F, 922R, 924, 925, 925F, 925R, 930, 930F, 930R Use the H142315 Left-Hand Bat configuration; verify serial number on 900-series platforms. |
| Case IH |
1010, 1020 Older reel configurations using Case IH 1989440C1 Left-Hand poly reel finger. |
| Gleaner / AGCO |
400, 500, 700, 800 Series heads HCC Level 1 / 4.5-inch reel applications using AGCO 71367263. |
| Massey Ferguson |
950, 9700 Applications using Massey Ferguson 1077757M1; verify original finger number. |
| New Holland |
971, 973 Additional 9842261 applications: 72C, 73C, 74C, 92C, 94C, 994, 994D Some later HCC-reel applications also catalog 9842261. Verify the original finger number and 4.5-inch Left-Hand Bat geometry before ordering. |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | RF0004 |
Left-Hand Bat poly combine reel tine 4.5-inch family – sold individually |
| John Deere | H142315 | OEM Left-Hand Bat reel finger 900 Series S/N 645301–685400 |
| Case IH | 1989440C1 | Poly reel finger – Left Hand |
| AGCO / Gleaner | 71367263 | HCC Level 1 plastic finger – LH Bat 4.5-inch spacing |
| New Holland | 9842261 | OEM reel-finger reference Also used in selected later HCC-reel applications |
| Massey Ferguson | 1077757M1 | Left-hand poly reel-finger family |
| Common Replacement Ref. |
P142314 224017 26419 AP153175L 11455229 |
Common references for the older 4.5-inch Left-Hand Wing / Bat family |
| Conditional Interchange |
86620755 71389107 |
Some aftermarket catalogs list these later-family numbers with the 4.5-inch LH finger on selected HCC applications. Verify original finger number and reel geometry before substituting. |
