AftermarketFARM.com | Vermeer R2800 Rubber-Mounted Rake Tine | Replaces Vermeer 510501250 | PCRT17

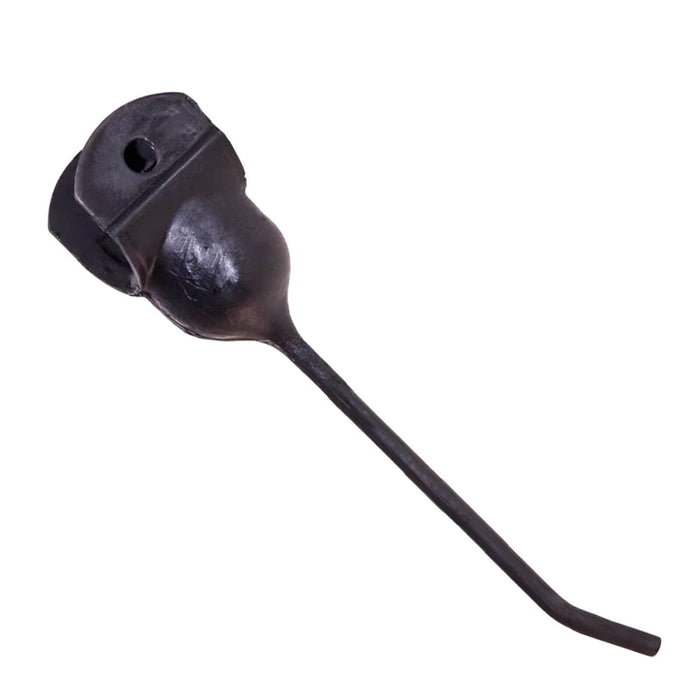

AftermarketFARM.com PCRT17 is a rubber-mounted rake tine designed for compatible Vermeer R2300 and R2800 Twin Rakes. This single-prong replacement tine replaces Vermeer 510501250 and cross-references to commonly published replacement numbers including 164269, T16-0189, 3013-8140 and 469-51050.
The heat-treated steel tine is securely retained in a flexible rubber yoke to help absorb field shock while maintaining dependable crop pickup. PCRT17 features a nominal 1-7/8-inch yoke opening, a 3/8-inch mounting hole, a 9-inch tine length from the mounting hole to the tip, an approximate 9-1/2-inch overall length, and an approximately 9/32-inch tine diameter.
The 1-7/8-inch yoke opening is an important identification point for this replacement. Other Vermeer rake models use similar-looking rubber-mounted teeth with narrower mounting configurations, so confirm the yoke opening and mounting-hole size when replacing a tooth by dimensions rather than OEM part number.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | PCRT17 |
| Brand | AftermarketFARM.com |
| Part Type | Rake Tine |
| Style | Single-Prong |
| Mount Type | Rubber Mounted |
| Construction | Heat-Treated Steel Tine Rubber Yoke |
| Tine Retention | Hook-Style Tine Head |
| Yoke Opening |
1-7/8" Nominal Approx. 1.90" |
| Mounting Hole |
3/8" Nominal Approx. 13/32" measured |
| Tine Length |
9" Mounting Hole to Tip |
| Tine Length from Yoke |
Approx. 8-31/32" Bottom of Yoke to Tip |
| Overall Length | Approx. 9-1/2" |
| Tine Diameter |
Approx. 9/32" Approx. 0.276" |
| Application | Hay Rake |
Fits Machines
| Brand | Models |
|---|---|
| Vermeer |
R2300 Twin Rake R2800 Twin Rake |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| AftermarketFARM.com | PCRT17 | 1-7/8" yoke rubber-mounted replacement rake tine |
| Vermeer | 510501250 | Primary OEM replacement reference |
| Common Replacement Ref. |
164269 T16-0189 3013-8140 469-51050 |
Common published replacement references |
| Other Aftermarket |
46951050 A-510501250 WN-A-510501250 AM510501250 E-510501250 BHM90-0006 359365-20 |
Additional published aftermarket references |
