AIC Tillage | 55" Right-Hand Hay Rake Wheel – ASTM A401 | AICT-RW55RH

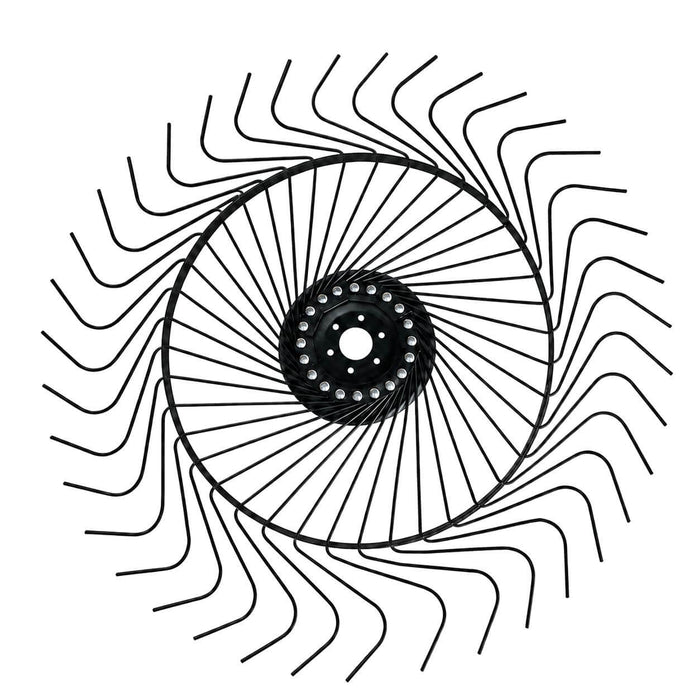

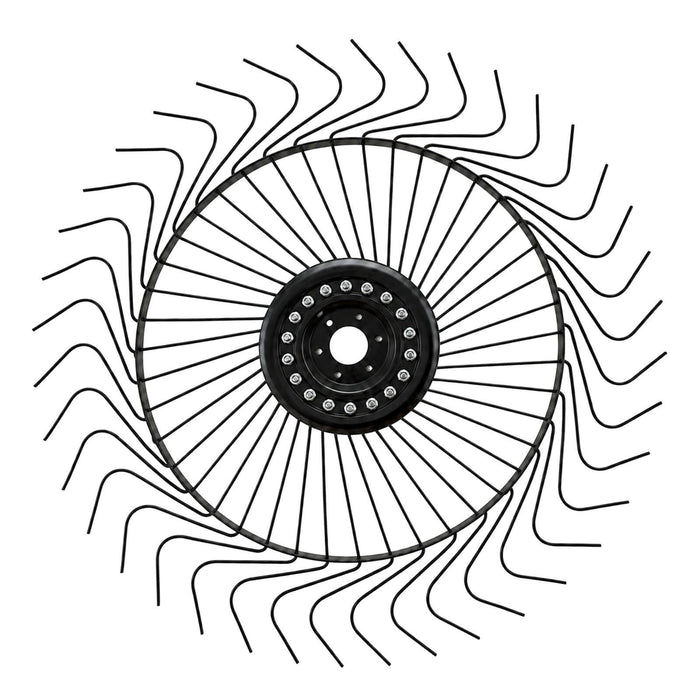

AIC Tillage AICT-RW55RH is a 55-inch right-hand replacement hay rake wheel built with 40 straight 7 mm ASTM A401 spring steel tines. The wheel features an 80 mm centre pilot with a 6-hole mounting pattern on a 131 mm bolt circle and interchanges with the common P20BG003 / TEP20BG003 right-hand rake wheel family used across many popular agricultural wheel rakes.

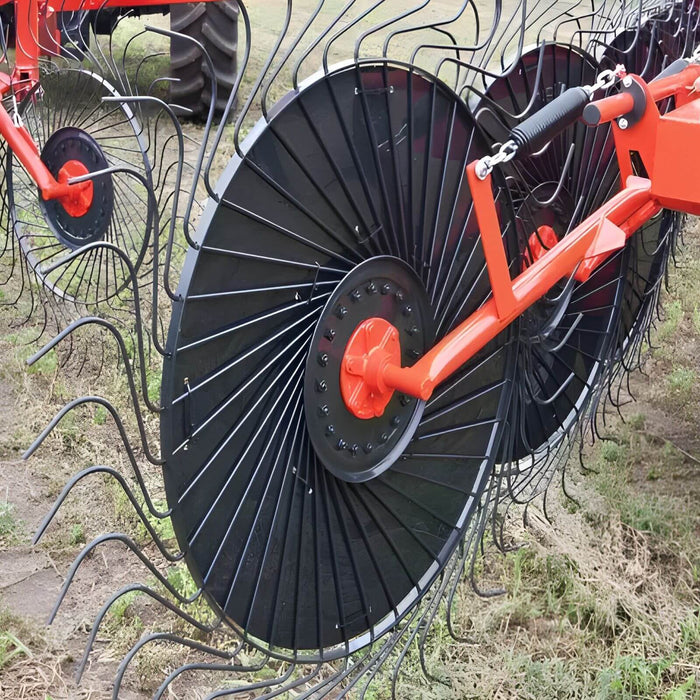

Designed for dependable hay and forage pickup, the 40-tine configuration provides consistent crop engagement and movement while the premium spring steel tines provide the strength, flexibility and resilience required for repeated field use. This wheel is used in right-hand rake-wheel positions on compatible Frontier, John Deere, Tonutti, New Holland, H&S, Sitrex, DuraBilt, Enorossi, Vermeer and other wheel rake applications.
Product Specifications
| Part Type | Hay Rake Wheel |
| Wheel Diameter | 55 inch |
| Wheel Direction | Right Hand |
| Number of Tines | 40 |
| Tine Style | Straight |
| Tine Diameter | 7 mm |
| Tine Material | ASTM A401 Spring Steel |
| Centre Pilot | 80 mm (3.15 inch) |
| Mounting Pattern | 6 Hole |
| Bolt Circle | 131 mm (5.16 inch) |
| Replacement Tine | A-P25AG005 / P25AG005 7 mm rake wheel tine |
| Application | Agricultural Wheel Rakes |
| Fitment Check | Confirm right-hand wheel direction, 80 mm centre pilot 6-hole mounting pattern and 131 mm bolt circle |
| Brand | AIC Tillage |
| Part Number | AICT-RW55RH |
Fits Machines
| Frontier | WR1108, WR1112, WR1116, WR1212C, WR1214C, WR1216C, WR1218C WR3008, WR3010, WR3012, WR3310, WR3312, WR3313, WR3315 |
| John Deere | 702, 704 |
| Tonutti | RTP8, RTP10, RTP12, T6, T9, T13 V10, V12, V14, V16, V18, V20 |
| New Holland | DuraVee 817, 1020, 1225, 1428, 1631, 1833, 2036 H5920, HT152, HT154 ProCart 819, 1022, 1225 |
| H&S | 4112, 4114, 4116 TR7, TR9, TR/9-3W, TR/9-S |
| Sitrex | H90V8, H90V10, H90V12 MKE12, MKE14, MKE16, MKE18, MKE20 MX8, MX10, QR8, QR10, QR12, QRX12, QRX14 |
| DuraBilt | HCL8, HCL10, HCL12 |
| Enorossi | BAT 8, BAT 10, BAT 12 55-inch wheel configurations |
| Vermeer | WR20, WR22, WR24 |
| Other Applications | Select Gehl, M&W, OTMA, Rossi and Walton wheel rakes using the same P20BG003-style right-hand wheel and mounting configuration |
Cross Reference
| AIC Tillage | AICT-RW55RH |
| Tonutti | P20BG003 TEP20BG003 |
| John Deere / Frontier | AE57871 HPBFR31 5HPBFR31 |
| New Holland | 86729951 |
| H&S / M&W | P20BG003 P20BG090 |
| Sitrex | 210180 P20BG003 P20BG090 |
| Gehl / OTMA / Rossi | P20BG003 |
| Vermeer | 773832 |
| Other Aftermarket Part Numbers | A-P20BG003 804-P20BG003 RW177 W16-0801 W16-0805 |
