AIC Tillage | 22-Inch Coil Harrow Tine | Replaces CNH / Flexi-Coil 87505461, 8327 | AICT-1003

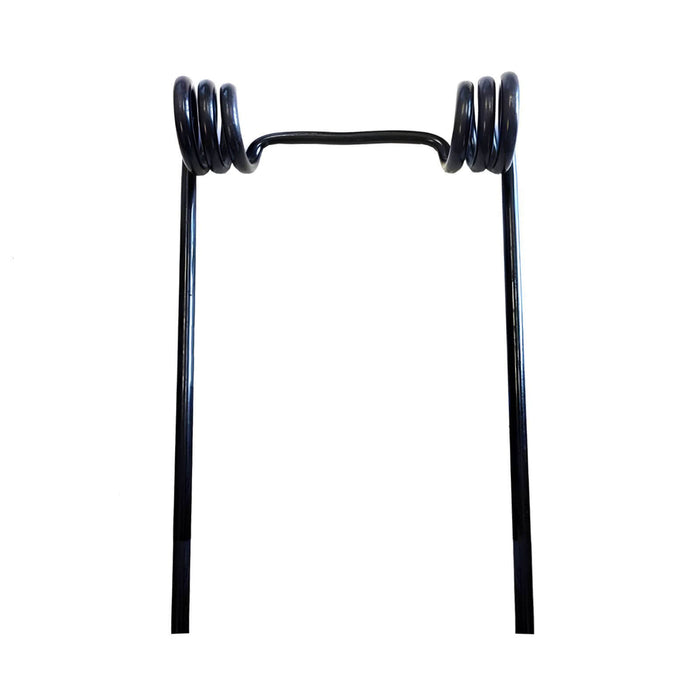

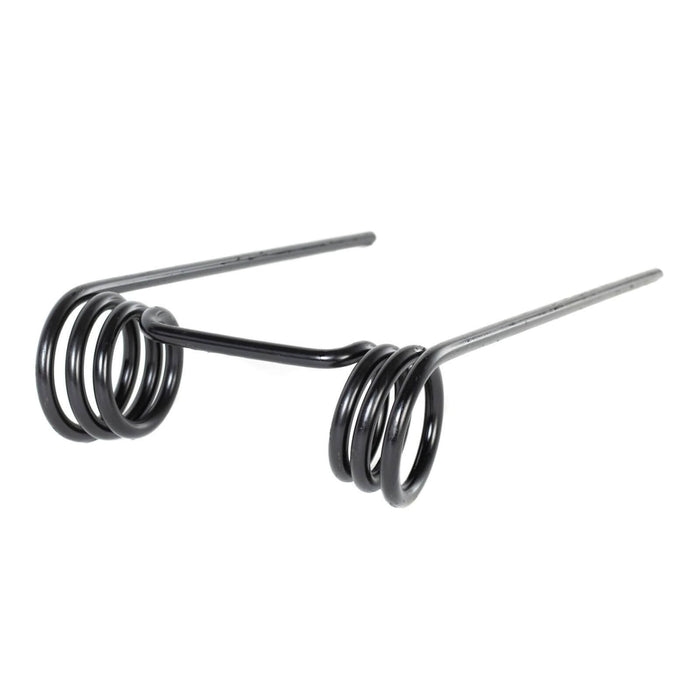

AIC Tillage AICT-1003 is a heavy-duty 22-inch coil harrow tine designed for compatible Flexi-Coil heavy harrows and tillage equipment. It replaces CNH / Flexi-Coil OEM part number 87505461 and legacy Flexi-Coil part numbers 8327, 8327\C and 8327FB. This replacement tine may also be commonly referred to as a spring tine or harrow tooth.

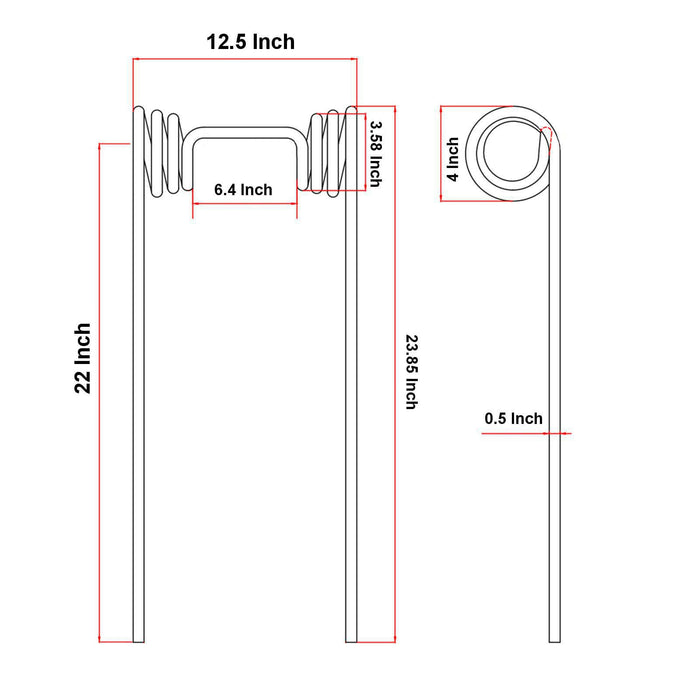

The AICT-1003 is manufactured from heavy 0.500-inch (1/2-inch) spring steel wire and is commonly identified by its 22-inch nominal tine length, measured from the center of the coil to the tip. The complete tine measures approximately 23.850 inches overall height and 12.500 inches overall width, so the nominal 22-inch tine length should not be confused with the full top-to-bottom height of the formed tine.

For additional fitment identification, the AICT-1003 measures approximately 6.400 inches between the inner coil sections. Its double-spring heavy-harrow design, 22-inch nominal length, 0.500-inch wire diameter, overall width and coil spacing provide useful reference points when comparing it with an existing Flexi-Coil 87505461 or 8327 harrow tine.

To confirm fitment, compare the OEM part number, 22-inch nominal tine length, 0.500-inch wire diameter, overall width, coil spacing and tine shape with the original tine before ordering. See the specifications, machine fitment and cross-reference tables below for additional identification information.

Product Specifications

Fits Machines

Cross Reference
