AIC Tillage | 27-Inch Universal Coil Harrow Tine | Replaces Gates 120230, Degelman 143113 | AICT-1004

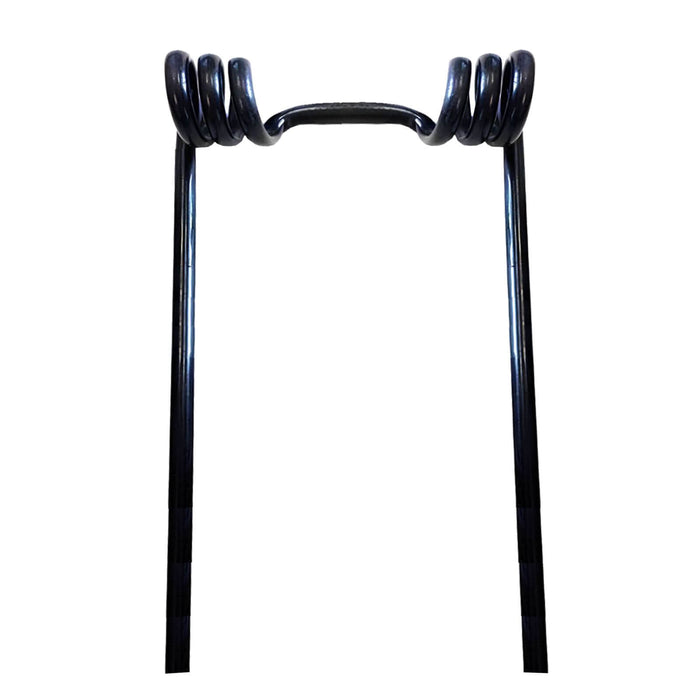

AIC Tillage AICT-1004 is a heavy-duty 27-inch universal coil harrow tine designed for compatible Gates, Degelman, Brandt, Bourgault, Rite Way and Summers heavy harrow equipment. Primary OEM references include Gates 120230, Degelman 143113 and Brandt B021751. This replacement tine may also be commonly referred to as a spring tine, harrow tooth or heavy harrow tine.
The AICT-1004 is manufactured from heavy 0.625-inch (5/8-inch) spring steel wire and is identified by an approximately 27-inch tine length measured from the center of the coil to the tip. Its double-spring design is commonly used across multiple heavy-harrow brands for residue management, soil leveling, seedbed preparation and field finishing.

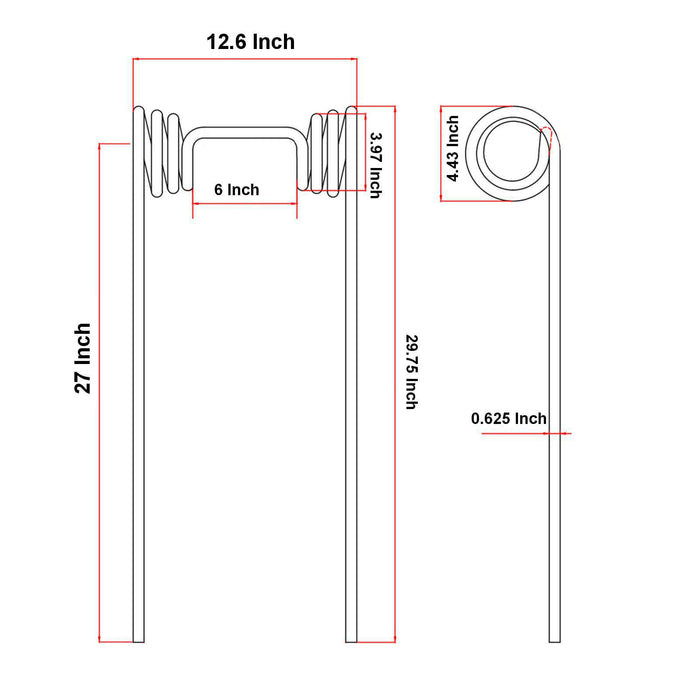

The AIC Tillage AICT-1004 measures approximately 29.750 inches overall height and 12.600 inches overall width, with approximately 6.000 inches between the inner coil sections. Additional reference measurements include a 3.970-inch front-view coil height and approximately 4.430 inches across the coil in the side view.
OEM and aftermarket catalogs may describe this tine family using slightly different nominal length conventions. To confirm fitment, compare the OEM part number, 27-inch center-of-coil-to-tip measurement, 0.625-inch wire diameter, overall width, coil spacing and tine shape with the original tine before ordering. See the specifications, machine fitment and cross-reference tables below for additional identification information.
Product Specifications
| Part Number | AICT-1004 |
| Part Type | Coil Harrow Tine |
| Style | Double-Spring Heavy Harrow Tine |
| Fits Equipment Brands | Gates, Degelman, Brandt, Bourgault, Rite Way, Summers |
| Replacement Type | Universal Heavy Harrow Replacement Tine |
| Nominal Tine Length – Coil Center to Tip | 27 inches |
| Overall Height | 29.750 inches |
| Overall Width | 12.600 inches |
| Between Inner Coil Sections | 6.000 inches |
| Front-View Coil Height | 3.970 inches |
| Side-View Coil Outside Dimension | 4.430 inches |
| Wire Diameter | 0.625 inch |
Fits Machines
| Degelman Heavy Harrows | Strawmaster 700 Narrow, Strawmaster 7000 Narrow, applications using OEM 143113 or 143507 |
| Gates Heavy Harrows | Mounted Magnum Harrows using OEM 120230 |
| Brandt Heavy Harrows | Applications using OEM B021751, C501587 or C516584 |
| Rite Way Heavy Harrows | 8100 and 8200-Series applications using OEM 404-0030 |
| Additional OEM Applications | Bourgault applications using 2070-70 or 8606-13, Summers / Herman applications using 8H1195S |
Cross Reference
| AIC Tillage | AICT-1004 |
| Gates OEM | 120230, 120229 |
| Degelman OEM | 143113, 143507, 143517 |
| Brandt OEM | B021751, C501587, C516584 |
| Bourgault OEM | 2070-70, 8606-13 |
| Rite Way OEM | 404-0030 |
| Summers / Herman OEM | 8H1195S |
| Other Aftermarket | 010-HAR-6250ML, 010-DEG-6227ML, REM-4241, B40H6227U |
