Outback Wrap | Hydraulic Hose Color Identification Wraps – 4-Pair A/B Numbered | Part 18X4GBBB

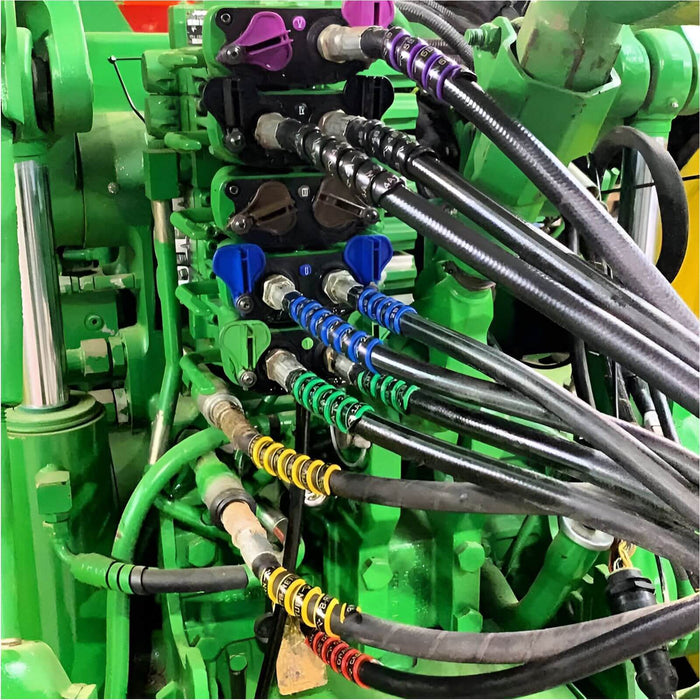

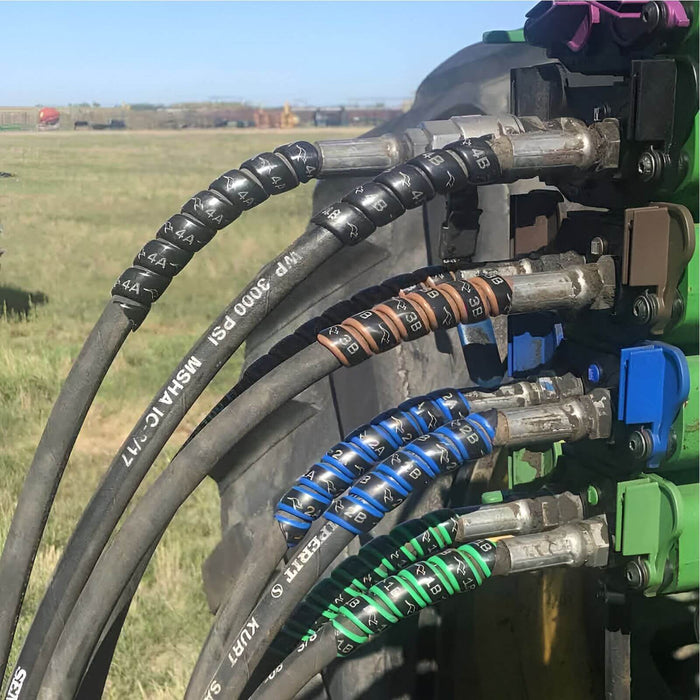

Outback Wrap Part 18X4GBBB hydraulic hose color identification wraps are designed to help operators quickly identify and match hydraulic hoses to remote hydraulic valves, reducing hookup errors and saving time during equipment operation.

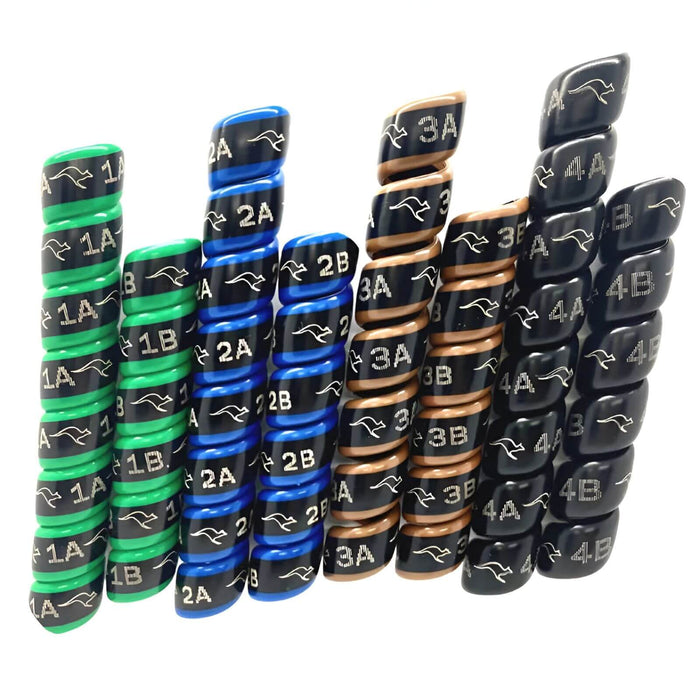

This 4-pair set includes 8 wraps marked 1 through 4 and color coded for easy identification: 1 = Green, 2 = Blue, 3 = Brown, 4 = Black. Each wrap is laser-etched with A/B markings to identify left/right or above/below hose positions. The A and B wraps are different lengths, providing an additional visual cue that makes hose identification faster and more intuitive in the field.
Outback Wrap hose identification wraps fit 1/4" to 1-1/2" hydraulic hoses, install easily near hose ends with no tools required, are reusable, and have no impact on hydraulic performance. Ideal for tractors and equipment using multiple remote hydraulic circuits
Specifications
| Specification | Details |
|---|---|
| Brand | Outback Wrap |
| Product Type | Hydraulic Hose Accessories |
| Part Number | 18X4GBBB |
| Package | 4-Pair Set (8 Wraps) |
| Color Coding (Sets) |
1 = Green 2 = Blue 3 = Brown 4 = Black |
| Orientation Marking | Laser-etched A / B indicators for left/right or above/below identification |
| Wrap Lengths | A and B wraps are different lengths for enhanced visual identification |
| Installation | Snap-on installation no tools required |
| Reusable | Yes |
| Hydraulic Function | None (identification only) |
Sizing & Material
| Category | Details |
|---|---|
| Hose Size Compatibility |
Fits hydraulic hoses 1/4" to 1-1/2" diameter |
| Material | Polyethylene construction (color molded in) *won’t crack, fade, or peel* |
| Temperature Resistance |
-60°F (-50°C) to 212°F (100°C) |
| Environmental Resistance |
Oil, grease, UV, and weather resistant |
