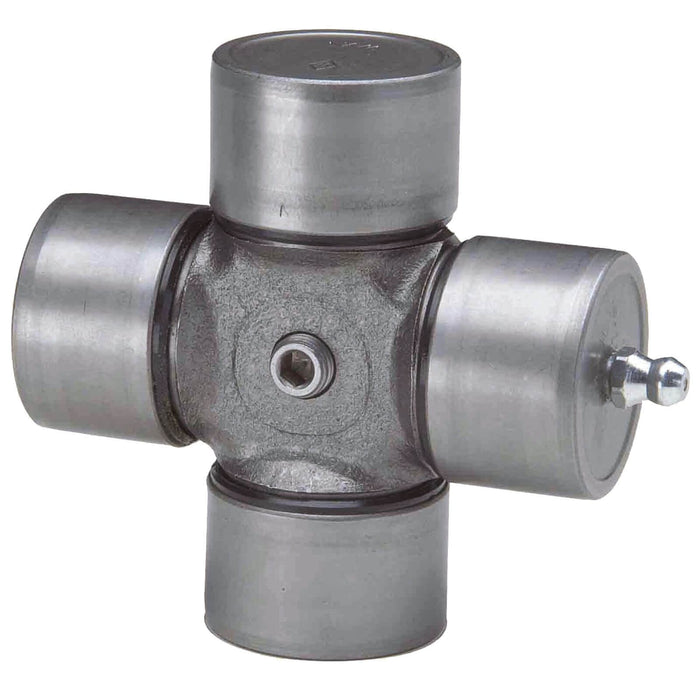

Walterscheid | PTO U-Joint Cross Kit 2200 Series | Standard Seal 1xBBS | 116402

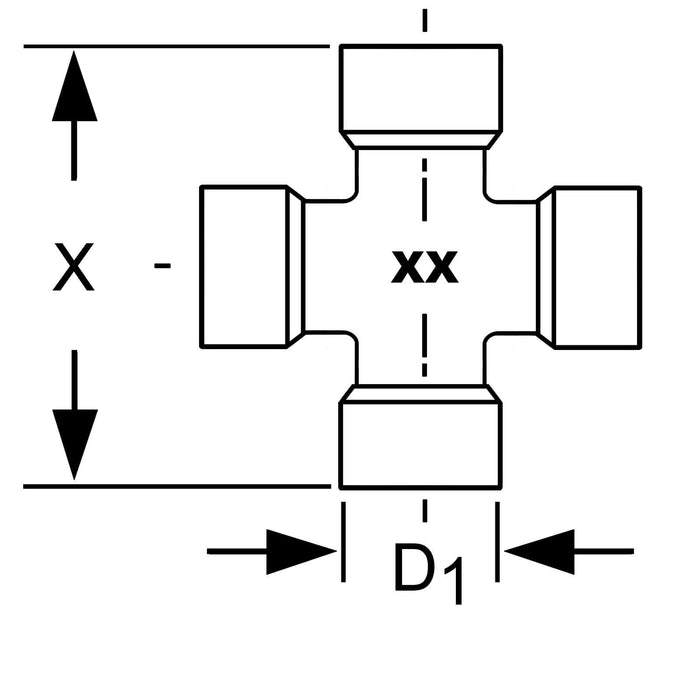

Genuine Walterscheid 116402 | PTO U-joint cross and bearing kit for 2200 Series agricultural PTO drivelines. This cross measures 24 mm bearing cup diameter (D1) × 61 mm overall cross length (X) and uses Walterscheid's standard seal design.
This version uses Walterscheid's 1xBBS lubrication configuration. Walterscheid offers several 2200-size cross kits with the same critical 24 × 61 mm dimensions but different seal and lubrication configurations.
Fits compatible W2200 standard PTO driveline joints. The same 2200-size non-CV joint is also used on the standard joint side of compatible WWE2280 wide-angle drivelines. In those applications, this cross is used only in the non-CV joint position and is not the 2280 CV cross.
Walterscheid also offers a matching P-Series P-Seal 1xBBS version, part 1122076, with the same 24 × 61 mm cross size. That version provides Walterscheid's upgraded P-Seal design.
Walterscheid part 116402 corresponds to full Walterscheid OEM product number 1116402.
Verify Fit:
Confirm the original part number and cross dimensions before ordering: 24 mm D1 × 61 mm X. On compatible WWE2280 wide-angle drivelines, this cross is used in the standard non-CV joint position only.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 116402 |
| Walterscheid OEM Number | 1116402 |
| Brand | Walterscheid |
| Part Type | PTO U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2200 |
| Cross Size | 24 × 61 mm |
| Bearing Cup Diameter (D1) | 24 mm / 0.945" |
| Cross Overall Length (X) | 61 mm / 2.402" |
| Seal Type | Standard Seal |
| Lubrication | 1xBBS |
| Driveline Series | W2200 WWE2280 – Non-CV Joint |
| Walterscheid Drawing | 20.00.141 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| W2200 | Direct Fit | 2200 Series application Standard Seal – 1xBBS |
| WWE2280 | Non-CV Joint Only | Same 2200 cross size 1xBBS lubrication version Not for the 2280 CV cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid W-Series | 116402 1116402 | 24 × 61 mm Standard Seal – 1xBBS |
| Walterscheid P-Series | 1122076 | 24 × 61 mm Same 2200 cross size P-Seal upgrade version – 1xBBS |
| Walterscheid W-Series | 1116412 | 24 × 61 mm Same 2200 cross size Standard Seal – 2xBBS |
| Walterscheid W-Series | 1044439 | 24 × 61 mm Same 2200 cross size Standard-seal default version |
| Weasler | 200-8261 | 23.8 × 61.2 mm AB2 / AW20 reference Verify application |
| Bondioli & Pavesi | 41202 41202R | 23.8 × 61.3 mm Series 2 reference Verify application |
| Neapco | 1-0221 | 24 × 61 mm 2200 / Series 2 reference Verify application |
| Aftermarket Ref. | 395116402 2.01 201 840 S2447 S23503 212230 | 2200 / Series 2 aftermarket references Verify measurements before ordering as a replacement |
