Walterscheid | PTO CV U-Joint Cross Kit 2380 Series | P-Seal | 122315

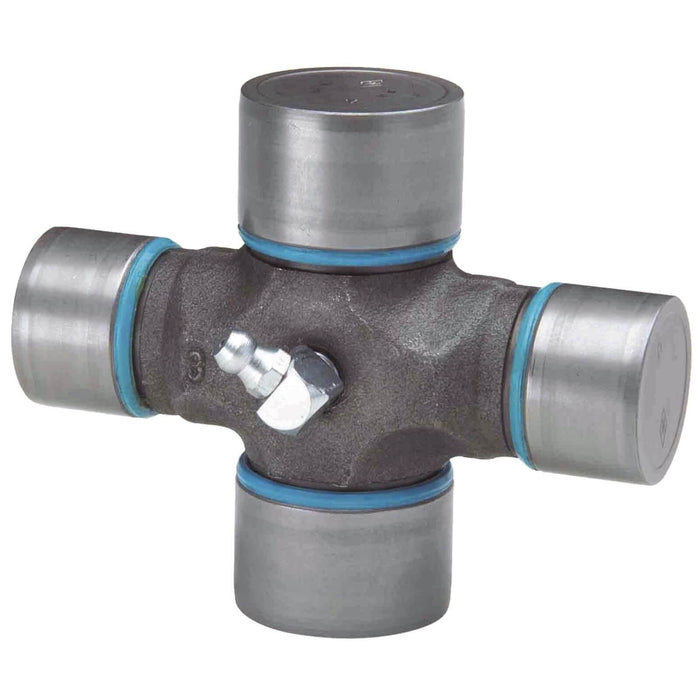

Genuine Walterscheid 122315 | PTO CV U-joint cross and bearing kit for 2380 Series wide-angle agricultural PTO drivelines. This unequal-arm CV cross measures 27 × 75 mm (D1 × X) on one axis and 24 × 91 mm (D2 × Y) on the second axis, and uses Walterscheid's upgraded P-Seal design.
Designed for compatible WWE2380 single-CV and WWZ2380 double-CV wide-angle drivelines using the same 2380 CV cross geometry. The P-Seal version can replace matching standard-seal 2380 cross kits while providing Walterscheid's upgraded seal design.
Walterscheid offers several 2380 CV cross kits with the same physical dimensions but different seal and lubrication versions. Part 122315 / 1122315 is the P-Seal default version.
Because the 2380 is an unequal-arm CV cross, both sets of dimensions must be checked when identifying a replacement. A standard 2300 cross may share the 27 × 75 mm side, but it does not have the second 24 × 91 mm axis required for the 2380 wide-angle joint.
Walterscheid part 122315 corresponds to full Walterscheid OEM product number 1122315.
Verify Fit:

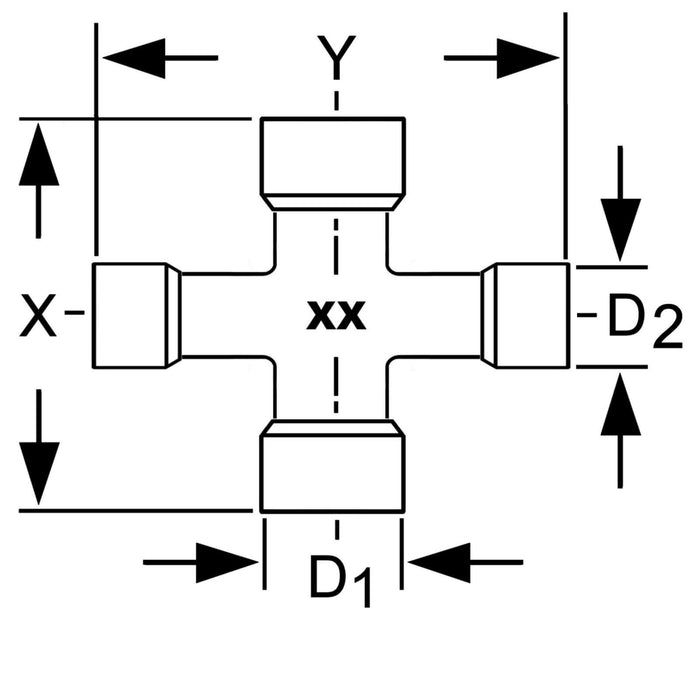

Confirm the original part number and both CV cross measurements before ordering: 27 × 75 mm (D1 × X) and 24 × 91 mm (D2 × Y).
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 122315 |
| Walterscheid OEM Number | 1122315 |
| Brand | Walterscheid |
| Part Type | PTO CV U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2380 |
| Bearing Cup / Cross Span (D1 × X) | 27 × 75 mm 1.063" × 2.953" |
| Bearing Cup / Cross Span (D2 × Y) | 24 × 91 mm 0.945" × 3.583" |
| Seal Type | P-Seal – Upgraded Seal Design |
| Driveline Series | WWE2380 WWZ2380 |
| Walterscheid Drawing | 21.06.03 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| WWE2380 | Single-CV Joint | 2380 CV application P-Seal upgrade version |
| WWZ2380 | Double-CV Joint | 2380 CV application P-Seal upgrade version |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid PW / P-Series | 122315 1122315 | 27 × 75 / 24 × 91 mm P-Seal – Default version |
| Walterscheid PW / P-Series | 1137651 | 27 × 75 / 24 × 91 mm P-Seal – 1xBBS |
| Walterscheid WW-Series | 1382701 | 27 × 75 / 24 × 91 mm Standard-seal default version |
| Walterscheid WW-Series | 1116550 | 27 × 75 / 24 × 91 mm Standard Seal – 1xBBS |
| Walterscheid WW-Series | 1123614 | 27 × 75 / 24 × 91 mm Standard Seal – Universal |
| Weasler | 200-7491 | 27 × 74.6 / 23.8 × 91 mm AW21 / W2380 CV cross |
| Cermag | 30813 | 27 × 75 / 24 × 91 mm 2380 wide-angle CV cross |
| Aftermarket Ref. | S.51152 P012106 P116550 67/5020-18 21.06.00 210600 | 2380 CV cross references Commonly listed at 27 × 75 / 24 × 91 mm Verify fitment before ordering |
