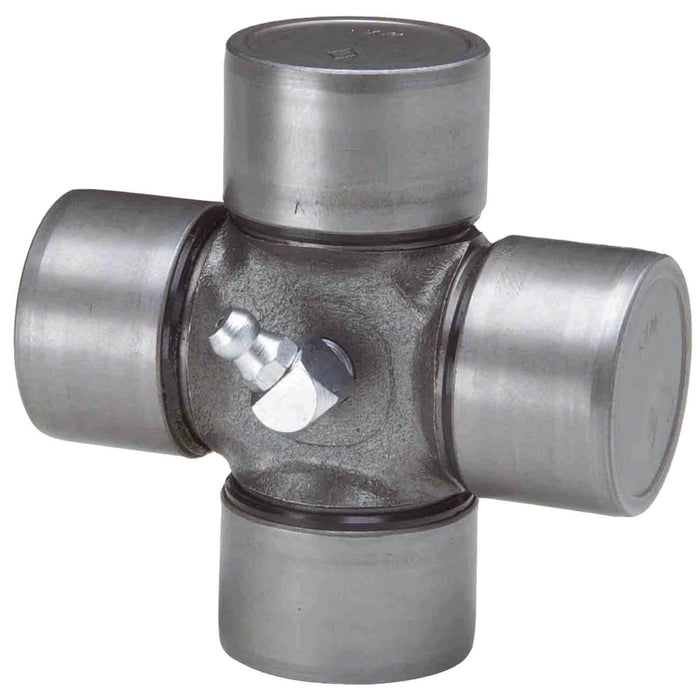

Walterscheid | PTO U-Joint Cross Kit 2400 Series | Standard Seal 1xBBS | 116404
Genuine Walterscheid 116404 | PTO U-joint cross and bearing kit for 2400 W-Series agricultural PTO drivelines. This cross measures 32 × 76 mm and uses Walterscheid's standard seal design with a 1xBBS lubrication configuration.
Designed as a direct replacement for compatible W2400 drivelines using the same 32 × 76 mm cross size. Walterscheid also offers matching P400 / 2400 P-Seal versions at the same physical dimensions for applications where the upgraded P-Seal design is preferred.
The same 2400-size cross is also used in the standard non-CV joint position of compatible WWE2480 wide-angle drivelines. In these applications, this cross fits the regular 32 × 76 mm joint and is not the 2480 CV cross.
Walterscheid offers several 2400-size cross kits with the same physical dimensions but different seal and lubrication versions. Part 116404 / 1116404 is the standard-seal 1xBBS version.
Walterscheid part 116404 corresponds to full Walterscheid OEM product number 1116404.
Verify Fit:

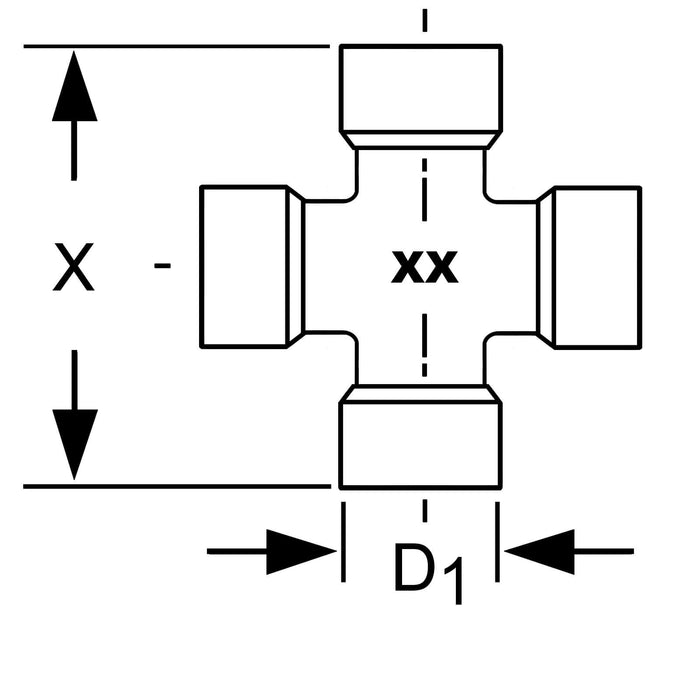

Confirm the original part number and cross dimensions before ordering: 32 mm D1 × 76 mm X. On compatible WWE2480 wide-angle drivelines, this cross is used in the standard non-CV joint position only.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 116404 |
| Walterscheid OEM Number | 1116404 |
| Brand | Walterscheid |
| Part Type | PTO U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2400 |
| Cross Size | 32 × 76 mm |
| Bearing Cup Diameter (D1) | 32 mm 1.260" |
| Cross Overall Length (X) | 76 mm 2.992" |
| Seal Type | Standard Seal |
| Lubrication | 1xBBS |
| Driveline Series | W2400 WWE2480 – Non-CV Joint |
| Walterscheid Drawing | 35.00.141 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| W2400 | Direct Fit | W-Series application Standard Seal – 1xBBS |
| WWE2480 | Non-CV Joint Only | Standard 2400-size joint Not for the 2480 CV cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid W-Series | 116404 1116404 | 32 × 76 mm Standard Seal – 1xBBS |
| Walterscheid W-Series | 1312410 350000 / 35.00.00 | 32 × 76 mm Standard-seal default version |
| Walterscheid W-Series | 1116394 | 32 × 76 mm Standard Seal – Universal |
| Walterscheid W-Series | 1116414 | 32 × 76 mm Standard Seal – 2xBBS |
| Walterscheid P-Series | 122078 1122078 | 32 × 76 mm P-Seal upgrade – 1xBBS |
| Walterscheid P-Series | 1121144 | 32 × 76 mm P-Seal upgrade – Default version |
| Walterscheid P-Series | 1116361 | 32 × 76 mm P-Seal upgrade – 2xBBS |
| Weasler | 200-7676 201-7676 | 32 × 76 mm 2400 / W2400-size cross |
| Vapormatic | VTE5008 | 32 × 76 mm W2400-size cross reference |
| La Magdalena | 2224 | 32 × 76 mm W2400-size cross reference |
| GMB | 2500140 | 32 × 75.9 mm Near-equivalent published dimensions Verify measurements |
| Aftermarket Ref. | P010154 S.6450 S.172040 A-W312410-A WN-W312410-A 343-1206 WCB035 PM200-7676 B150120 4242000 500-124-34 | 2400 / W2400-size references Commonly listed around 32 × 76 mm Verify fitment before ordering |
