Walterscheid | PTO CV U-Joint Cross Kit 2480 Series | Standard Seal 1xBBS | 135075

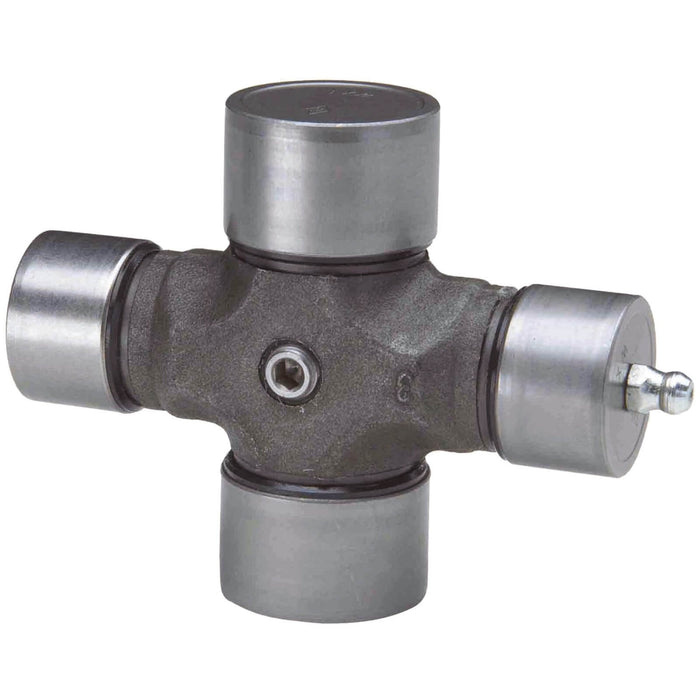

Genuine Walterscheid 135075 | PTO CV U-joint cross and bearing kit for 2480 Series wide-angle agricultural PTO drivelines. This unequal-arm CV cross measures 32 × 76 mm (D1 × X) on one axis and 27 × 94 mm (D2 × Y) on the second axis, and uses Walterscheid's standard seal design with a 1xBBS lubrication configuration.
Designed for compatible WWE2480 single-CV and WWZ2480 double-CV wide-angle drivelines using the same 2480 CV cross geometry.
Walterscheid offers several 2480 cross kits with the same physical dimensions. Part 135075 / 1135075 is the standard-seal 1xBBS version. A same-size standard-seal central-lube version is available as 1135076, while the matching P-Seal versions are 1135077 and 1135078. :contentReference[oaicite:2]{index=2}
Because the 2480 is an unequal-arm CV cross, both sets of dimensions must be checked when identifying a replacement. A standard 2400 cross may share the 32 × 76 mm side, but it does not have the second 27 × 94 mm axis required for the 2480 wide-angle joint.
Walterscheid part 135075 corresponds to full Walterscheid OEM product number 1135075.
Verify Fit:
Confirm the original part number and both CV cross measurements before ordering: 32 × 76 mm (D1 × X) and 27 × 94 mm (D2 × Y).
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 135075 |
| Walterscheid OEM Number | 1135075 |
| Brand | Walterscheid |
| Part Type | PTO CV U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2480 |

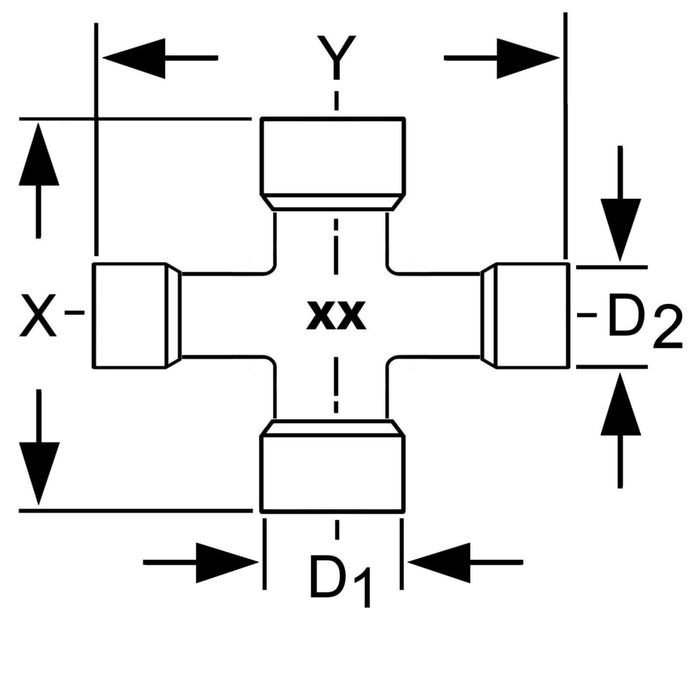

| Bearing Cup / Cross Span (D1 × X) | 32 × 76 mm 1.260" × 2.992" |
| Bearing Cup / Cross Span (D2 × Y) | 27 × 94 mm 1.063" × 3.701" |
| Seal Type | Standard Seal |
| Lubrication | 1xBBS |
| Driveline Series | WWE2480 WWZ2480 |
| Walterscheid Drawing | 35.06.141 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| WWE2480 | CV Joint Cross | 2480 CV application Standard Seal – 1xBBS |
| WWZ2480 | CV Joint Cross | 2480 CV application Standard Seal – 1xBBS |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid WW-Series | 135075 1135075 | 32 × 76 / 27 × 94 mm Standard Seal – 1xBBS |
| Walterscheid WW-Series | 135076 1135076 | 32 × 76 / 27 × 94 mm Standard Seal – Central Lube |
| Walterscheid PW / P-Series | 135077 1135077 | 32 × 76 / 27 × 94 mm P-Seal – 1xBBS |
| Walterscheid PW / P-Series | 135078 1135078 | 32 × 76 / 27 × 94 mm P-Seal – Central Lube |
| Weasler | 200-7694 201-7694 | 32 × 76 / 27 × 94 mm AW35-80 / 2480 CV cross |
| Eurocardan | 31243 | 32 × 76 / 27 × 94 mm Category 6 wide-angle CV cross |
| Aftermarket Ref. | S.170136 B99185 344-2203 3506141 35.06.141 350600 35.06.00 | 2480 CV cross references Commonly listed at 32 × 76 / 27 × 94 mm Verify fitment before ordering |
