Walterscheid | PTO U-Joint Cross Kit 2500 Series | Standard Seal 1xBBS | 116405

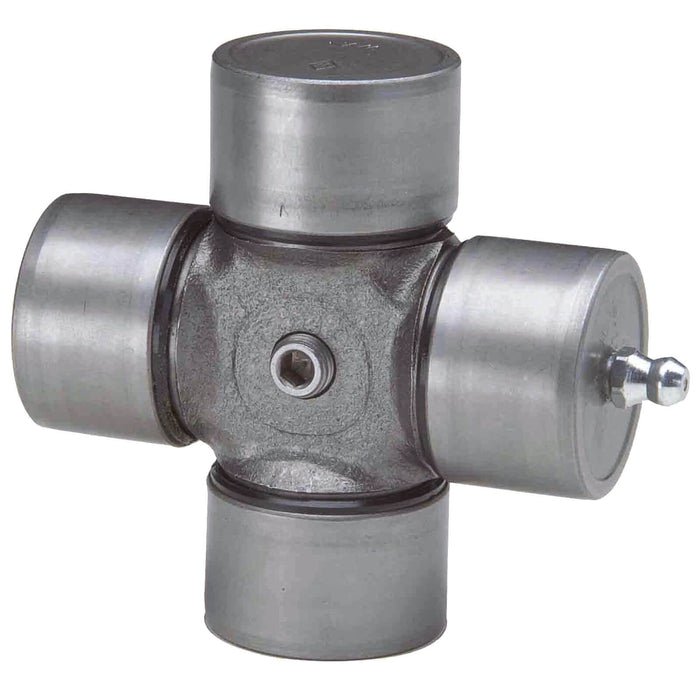

Genuine Walterscheid 116405 | PTO U-joint cross and bearing kit for 2500 W-Series agricultural PTO drivelines. This cross measures 36 × 89 mm and uses Walterscheid's standard seal design with a 1xBBS lubrication configuration.
Designed as a direct replacement for compatible W2500 drivelines using the same 36 × 89 mm cross size. Walterscheid also offers matching P500 / 2500 P-Seal versions at the same physical dimensions for applications where the upgraded P-Seal design is preferred.
The same 2500-size cross is also used in the standard non-CV joint position of compatible WWE2580 wide-angle drivelines. In these applications, this cross fits the regular 36 × 89 mm joint and is not the 2580 CV cross.
Walterscheid offers several 2500-size cross kits with the same physical dimensions but different seal and lubrication versions. Part 116405 / 1116405 is the standard-seal 1xBBS version.
Walterscheid part 116405 corresponds to full Walterscheid OEM product number 1116405.
Verify Fit:

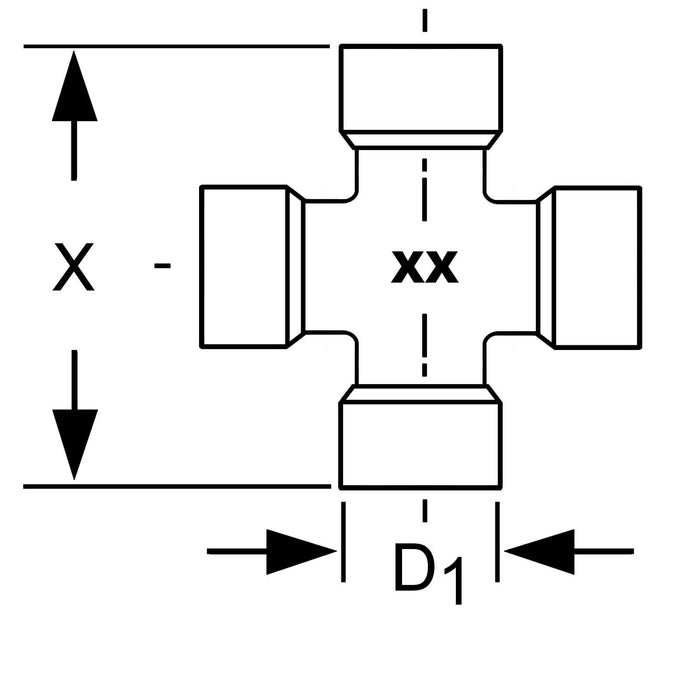

Confirm the original part number and cross dimensions before ordering: 36 mm D1 × 89 mm X. On compatible WWE2580 wide-angle drivelines, this cross is used in the standard non-CV joint position only.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 116405 |
| Walterscheid OEM Number | 1116405 |
| Brand | Walterscheid |
| Part Type | PTO U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2500 |
| Cross Size | 36 × 89 mm |
| Bearing Cup Diameter (D1) | 36 mm 1.417" |
| Cross Overall Length (X) | 89 mm 3.504" |
| Seal Type | Standard Seal |
| Lubrication | 1xBBS |
| Driveline Series | W2500 WWE2580 – Non-CV Joint |
| Walterscheid Drawing | 36.00.141 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| W2500 | Direct Fit | W-Series application Standard Seal – 1xBBS |
| WWE2580 | Non-CV Joint Only | Standard 2500-size joint Not for the 2580 CV cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid W-Series | 116405 1116405 | 36 × 89 mm Standard Seal – 1xBBS |
| Walterscheid W-Series | 1312209 | 36 × 89 mm Standard-seal default version |
| Walterscheid W-Series | 1116395 | 36 × 89 mm Standard Seal – Universal |
| Walterscheid W-Series | 1116415 | 36 × 89 mm Standard Seal – 2xBBS |
| Walterscheid P-Series | 122079 1122079 | 36 × 89 mm P-Seal upgrade – 1xBBS |
| Walterscheid P-Series | 1121145 | 36 × 89 mm P-Seal upgrade – Default version |
| Walterscheid P-Series | 1116692 | 36 × 89 mm P-Seal upgrade – 2xBBS |
| Weasler | 200-7989 201-7989 | 36 × 88.8 mm 2500 / W2500-size cross |
| Cermag | 30757 | 36 × 89 mm W2500-size cross |
| Vapormatic | VTE5010 VTE5029 | 36 × 89 mm W2500 / P500-size cross |
| Neapco | 3-2521 | 36 × 89 mm 2500 / W2500-size cross reference |
| Aftermarket Ref. | A-200-7989 A-92529 A-174-909 PM200-7989 W2007989DS WCB036 WCB0-36 51A6451 312209 360000M 36.00.00M 343-1208 978507 | 2500 / W2500-size references Commonly listed around 36 × 89 mm Verify fitment before ordering |
