Walterscheid | Heavy-Duty PTO U-Joint Cross Kit P800 | 147712

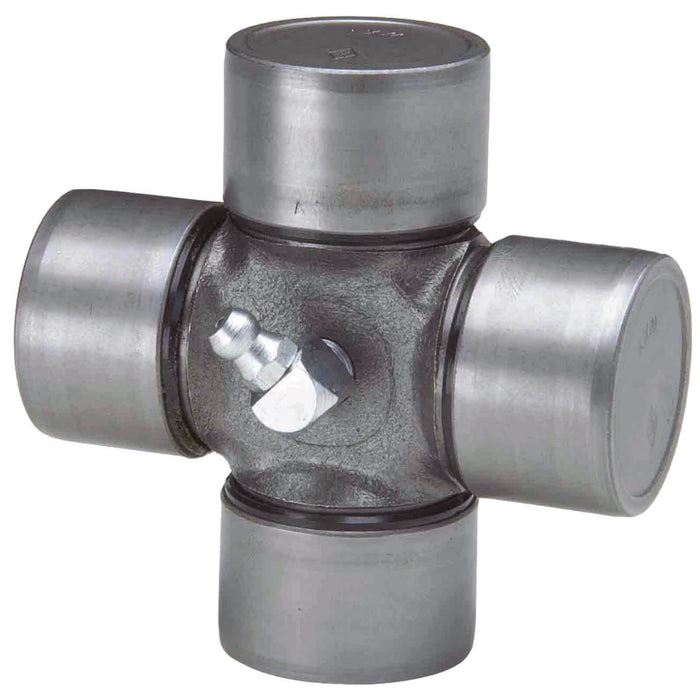

Genuine Walterscheid 147712 | Heavy-duty PTO U-joint cross and bearing kit for Walterscheid P800 PowerDrive agricultural PTO drivelines. This exceptionally large cross measures 53 × 135 mm and is designed for the high-power P800 driveline system.
The P800 PowerDrive was developed by Walterscheid for demanding agricultural machines and large tractors with outputs up to 500 hp. Its 53 mm bearing cups and 135 mm overall cross span make this one of the largest standard-joint cross sizes in the Walterscheid agricultural PTO range.
Designed for compatible P800 PowerDrive U-joints used in continuous-duty and high-load agricultural applications. Walterscheid lists the same 1147712 cross kit at both joint ends on complete P800 driveline configurations.
Unlike the smaller Walterscheid P-Series families that may have several P-Seal and lubrication versions, the current P800 cross-kit listing uses this single 53 × 135 mm cross design. The P800 designation identifies the driveline series and does not indicate a P-Seal cross.
Walterscheid part 147712 corresponds to full Walterscheid OEM product number 1147712.
Verify Fit:

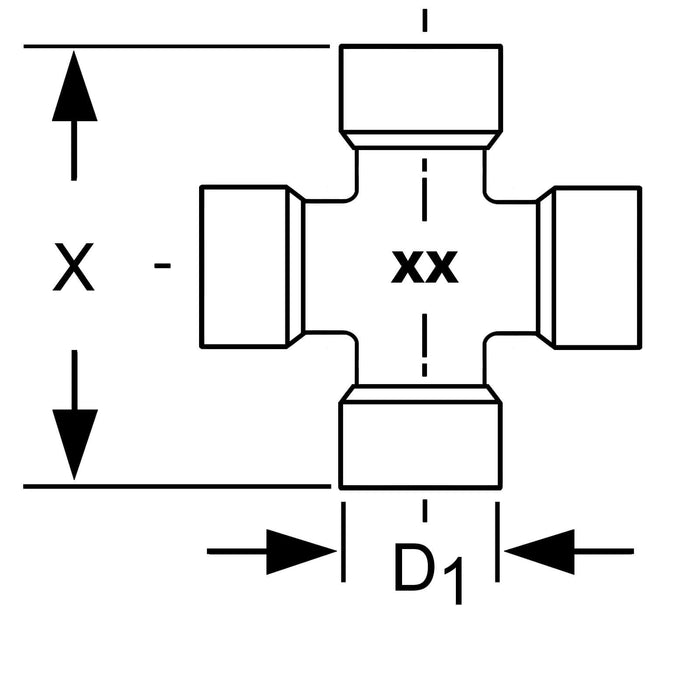

Confirm the original part number and cross dimensions before ordering: 53 mm D1 × 135 mm X.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 147712 |
| Walterscheid OEM Number | 1147712 |
| Brand | Walterscheid |
| Part Type | PTO U-Joint Cross & Bearing Kit |
| Application Class | Heavy-Duty / High-Power Agricultural PTO |
| Walterscheid Size | P800 |
| Cross Size | 53 × 135 mm |
| Bearing Cup Diameter (D1) | 53 mm 2.087" |
| Cross Overall Length (X) | 135 mm 5.315" |
| Seal Type | Standard Seal |
| Driveline Series | P800 PowerDrive |
| Power Class | Designed for tractors up to 500 hp |
| Walterscheid Drawing | 28.00.00 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| P800 | Direct Fit | PowerDrive application 53 × 135 mm cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid P800 | 147712 1147712 | 53 × 135 mm P800 PowerDrive |
| Eurocardan | 31919 | 53 × 135 mm Category 14 PLUS cross |
| ELBE | 0.117.015.001 | 53 × 135 mm ELBE 117 Series cross |
| Aftermarket Ref. | 395147712 | P800 / 53 × 135 mm reference Verify fitment before ordering |
