Walterscheid | PTO CV U-Joint Cross Kit 2480 / P480 | P-Seal Central Lube | 135078

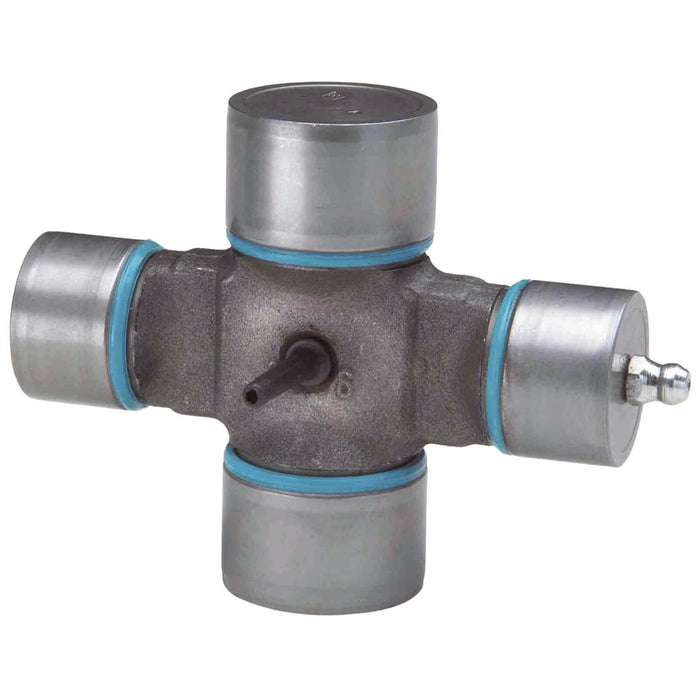

Genuine Walterscheid 135078 | PTO CV U-joint cross and bearing kit for 2480 / P480 Series wide-angle agricultural PTO drivelines. This unequal-arm CV cross measures 32 × 76 mm (D1 × X) on one axis and 27 × 94 mm (D2 × Y) on the second axis, and uses Walterscheid's upgraded P-Seal design.
Part 135078 / 1135078 is Walterscheid's P default configuration for compatible P480 / 2480 CV joints. This version is associated with the P480 central-lubrication arrangement and is listed as a service cross for compatible PJ480 wide-angle joints and PWE480 PowerDrive drivelines.
Walterscheid also offers part 135077 / 1135077 at the same 32 × 76 / 27 × 94 mm physical geometry with a 1xBBS configuration. Because both crosses share the same dimensions, the original Walterscheid part number and lubrication configuration should be checked when servicing the CV joint.
Matching standard-seal 2480 versions are also available for WW-series applications. These include 135075 / 1135075 and 135076 / 1135076, which use the same physical CV cross dimensions but the standard Walterscheid seal design.
Walterscheid part 135078 corresponds to full Walterscheid OEM product number 1135078.
Verify Fit:

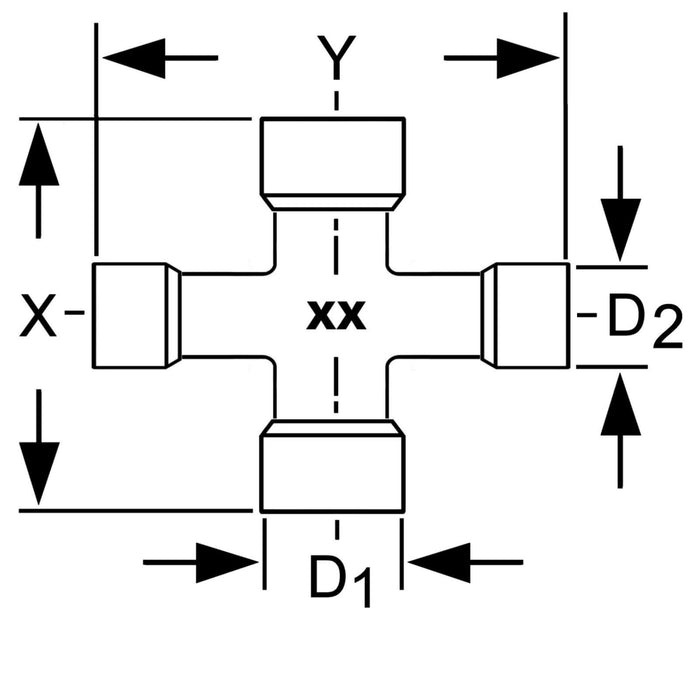

Confirm the original part number and both CV cross measurements before ordering: 32 × 76 mm (D1 × X) and 27 × 94 mm (D2 × Y). For P480 applications, also confirm that the original joint uses the P default / central-lube configuration.
Product Specifications
| Specification | Value |
|---|---|
| Part Number | 135078 |
| Walterscheid OEM Number | 1135078 |
| Brand | Walterscheid |
| Part Type | PTO CV U-Joint Cross & Bearing Kit |
| Walterscheid Size | 2480 / P480 |
| Bearing Cup / Cross Span (D1 × X) | 32 × 76 mm 1.260" × 2.992" |
| Bearing Cup / Cross Span (D2 × Y) | 27 × 94 mm 1.063" × 3.701" |
| Seal Type | P-Seal – Upgraded Seal Design |
| Cross Configuration | P Default / Central-Lube Configuration |
| Driveline / Joint Series | P480 PJ480 PWE480 |
| Walterscheid Drawing | 35.06.134 |
Fits Driveline Series
| Walterscheid Series | Fitment | Application Notes |
|---|---|---|
| P480 | CV Joint Cross | P-Seal P default / central-lube configuration |
| PJ480 | CV Joint Cross | P480 wide-angle joint Confirm original cross configuration |
| PWE480 | CV Joint Cross | PowerDrive single-CV driveline Listed Walterscheid service cross |
Cross Reference
| Brand / System | Part Number | Notes |
|---|---|---|
| Walterscheid PW / P-Series | 135078 1135078 | 32 × 76 / 27 × 94 mm P-Seal P default / central-lube configuration |
| Walterscheid PW / P-Series | 135077 1135077 | 32 × 76 / 27 × 94 mm P-Seal – 1xBBS |
| Walterscheid PW / P-Series | 1122319 | 32 × 76 / 27 × 94 mm P-Seal – Default configuration Drawing 35.06.130 |
| Walterscheid WW-Series | 135076 1135076 | 32 × 76 / 27 × 94 mm Standard Seal Alternate 2480 configuration |
| Walterscheid WW-Series | 135075 1135075 | 32 × 76 / 27 × 94 mm Standard Seal – 1xBBS |
| Weasler | 200-7694 201-7694 | 32 × 76 / 27 × 94 mm 2480 / AW35-80 dimensional equivalent |
| Eurocardan | 31243 | 32 × 76 / 27 × 94 mm 2480-size wide-angle CV cross |
| Aftermarket Ref. | A-W135078 35.06.134 3506134 S.170136 B99185 | 2480 / P480 CV references 32 × 76 / 27 × 94 mm family Verify fitment before ordering |
