Walterscheid | PTO Shafting – S4GA Coated Profile Tube | 1400 mm Length | Part 193296

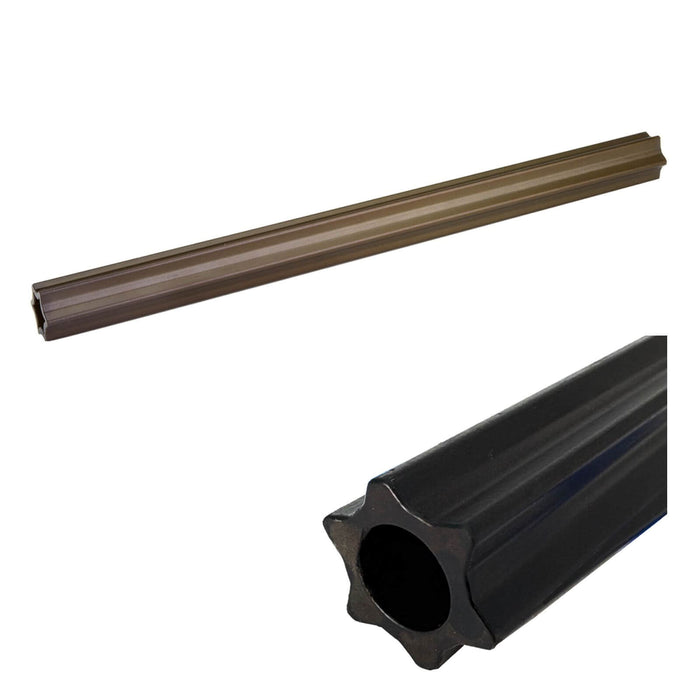

Genuine Walterscheid 1699744 | S4GA coated PTO shafting profile tube, supplied in a 1400 mm length, manufactured from ST52-3BK high-strength steel with a low-friction surface treatment to improve sliding performance and wear resistance.
This S4GA star profile tube (37 × 51 mm) is dimensionally identical to standard S4 profile tubing and is therefore physically interchangeable with S4 shafting when matched by profile and length.
From an engineering standpoint, S4GA is intended for Walterscheid CV (constant-velocity / wide-angle) PTO drivelines, where frequent telescoping movement and higher articulation angles place increased demand on shafting surfaces. In these applications, the GA coating helps reduce friction, heat buildup, and wear.
Because the underlying profile geometry is the same, S4GA may also be used in standard (non-CV) PTO drivelines if desired. While the coating is not required in non-CV applications, it does not reduce performance and may offer extended wear life under certain conditions.
This tube functions as an inner profile tube, restoring proper driveline overlap, smooth telescoping operation, and consistent torque transfer.
The supplied 1400 mm length provides additional material for fitting and may be cut to match the customer’s required driveline overall length (OAL) during installation.
Part 193296 – also part 1699744
Product Specifications
| Specification | Details |
|---|---|
| Brand (OEM Fitment) | Walterscheid |
| OEM Part Number | 1699744 |
| Store Part Number | 193296 |

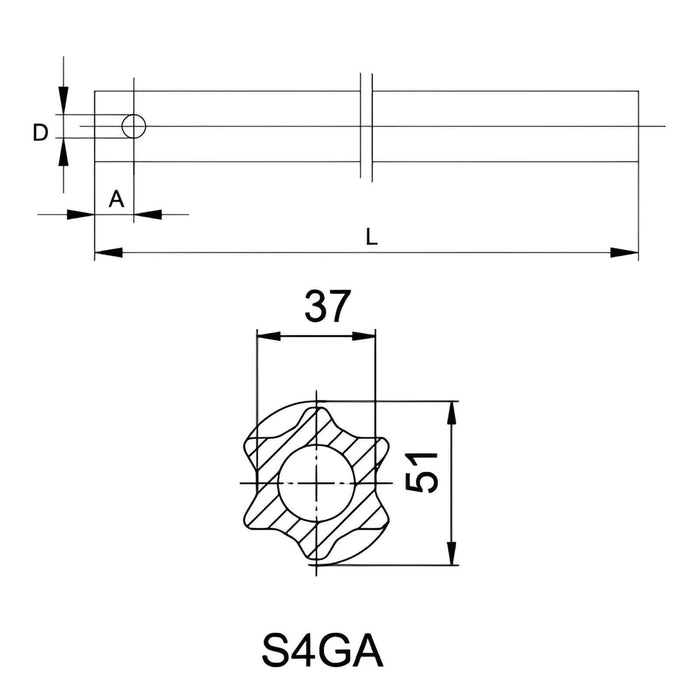

| A | Varies by Yoke (*Requires Drilling hole*) |
| D | 10mm |
| L | 1400mm or 55" (Can be cut to length) |
| Profile Type | S4GA Coated Star Profile (37×51 mm) (Inner Tube Only) |
| Material | ST52-3BK High-Strength Steel |
| Surface Treatment | Low-Friction Coated (GA) |
| Driveline Application | Walterscheid WPG CV (Wide-Angle) PTO Drivelines |
| Yoke Connection |
Fits S4 Profile Yokes Roll-Pin Secured 10mm (Requires Drilling hole) |
| Shaft Telescoping | Fits Inside S5 Profile Shafts |
| Interchangeability Note | Same 37×51 S4 geometry interchangeable with standard S4 tubing (GA coating Intended for CV Drivelines) |
Other Brand Fitment
| Compatible Brands | Interchangeability |
|---|---|
| Bondioli & Pavesi | Uses S4/S4GA-style tubes on many metric PTO shafts |
| Comer Industries | Common S4 star-profile across multiple driveline families |
| Weasler Engineering | Metric star tubes including S4 equivalents |
| Benzi & Di Terlizzi | Uses S4-compatible star tubing |
| Eurocardan | S4-style star profile used on many PTO drivelines |
| Bare-Co | Replacement S4 tube used in numerous PTO assemblies |
