Walterscheid | PTO Shafting – S5H Hardened Profile Tube | 1000 mm Length | Part 697201

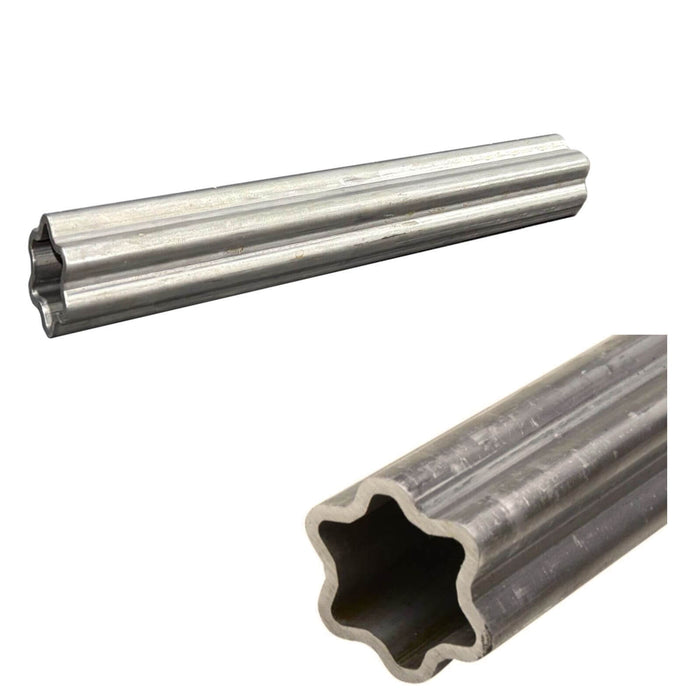

Genuine Walterscheid 1135883 | S5H hardened PTO shafting profile tube, supplied in a 1000 mm length, engineered for high-torque agricultural PTO applications where increased strength and resistance to twisting are required.

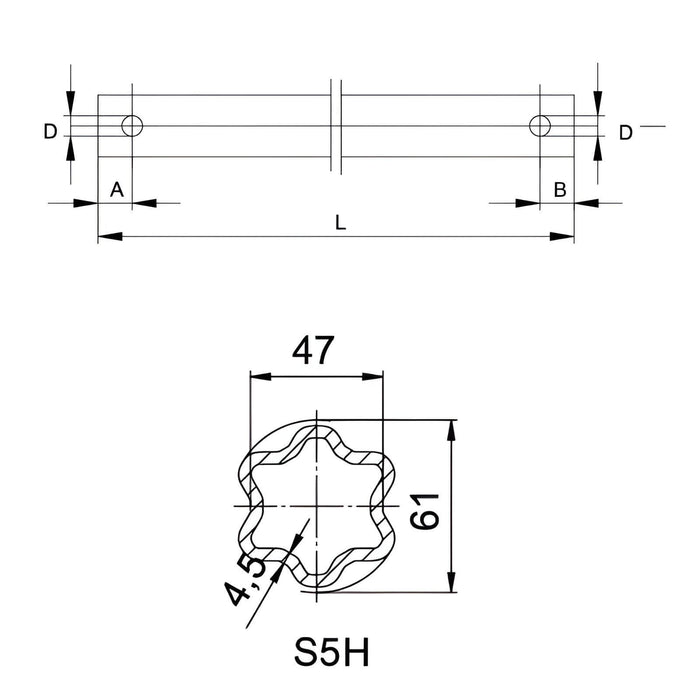

This S5H star profile tube (47 × 61 mm) is manufactured using a dedicated hardening process that significantly improves torsional strength and durability under load. It is specifically designed as an inner profile tube for Walterscheid P600, P700, and PWE675 PTO drivelines, where driveline stresses exceed those of standard applications.

To simplify installation and eliminate the need to drill through hardened material, this tube is supplied factory pre-drilled with two 10 mm cross holes:

• One end drilled at 22 mm to center

• Opposite end drilled at 14 mm to center

These pre-drilled holes are positioned to accommodate different S5 profile end yokes, allowing proper roll-pin retention without additional drilling.

Although engineered for use as an inner tube in the applications listed above, the S5H profile shares the same 47 × 61 mm geometry as standard S5 tubing and is therefore dimensionally interchangeable. It may be used as an inner or outer tube in other S5 driveline configurations when matched by profile, length, and application requirements.

Due to the hardened construction, this shafting is significantly more resistant to cutting than standard tubing. While the 1000 mm length may be trimmed to achieve the required driveline overall length (OAL), cutting typically requires abrasive cutting discs or equivalent equipment, as standard bandsaw blades may not be suitable for hardened material.

Part 697201 – also part 1135883
